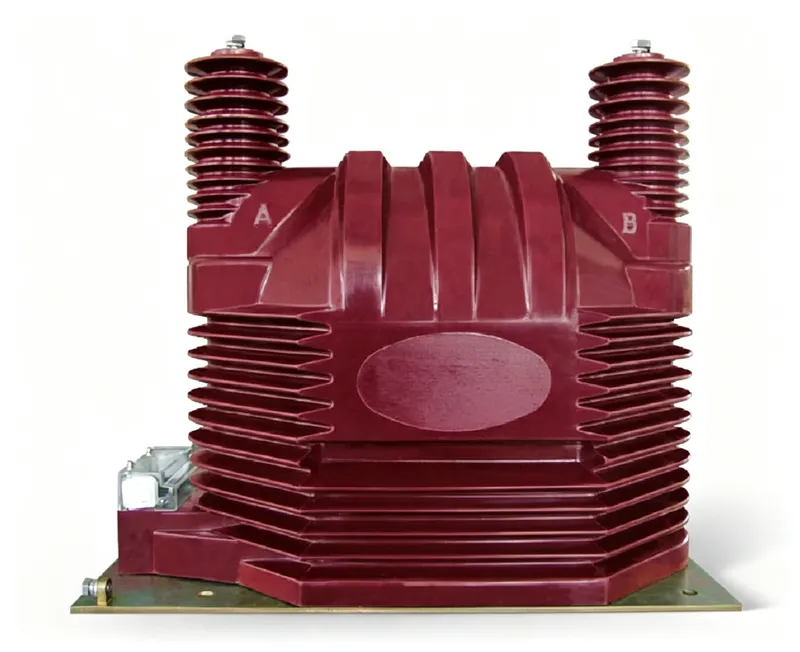

Outdoor pole-mounted single-phase power transformer for 35kV systems. 1000/2000/3000VA capacity options. Epoxy resin cast, high insulation level. Compliant with IEC 60076 and GB 1094 standards. Provides control power for 35kV switchgear.
This 35kV single-phase power transformer is ideal for powering pole-mounted switchgear control circuits. Its dry epoxy insulation and outdoor rating ensure reliable service in utility distribution networks.
| Parameter | Specification | Verification |
|---|---|---|
| Product Type | Power Transformer | IEC 60076, GB 1094 |
| Model Code | DC-1-2-3-35 | Factory nameplate marking |
| Primary Voltage | 35kV | Rated voltage test (IEC 61869-1/3) |
| Secondary Voltage | [On Request] | Ratio check at rated frequency |
| Accuracy Class | [On Request] | Accuracy test (IEC 61869-2 / IEEE C57.13) |
| Rated Burden | [On Request] | Burden test at rated VA |
| Insulation Type | Dry Epoxy Resin | Dielectric tests per standard |
| Insulation Level (BIL) | [On Request] | Power-frequency & lightning impulse withstand |
| Standards | IEC 60076, GB 1094 | Certified to listed standards |
| Frequency | 50/60Hz | Per IEC 61869-1 |
| Environment | Outdoor pole-mounted single-phase epoxy resin cast | Per datasheet limits |
Ideal For
Not Recommended For
For this power transformer, ground the secondary winding at one point. Follow IEC 60076 terminal markings: primary terminals are typically H1/H2, secondary terminals are X1/X2. Ensure proper fusing on the secondary side. Never operate with secondary short-circuited unless designed for that duty. Verify polarity and phase relationships before energizing.
Compliant with: IEC 60076, GB 1094
S_total = ΣS_instrument + I₂² × (ρ × 2L / A)
Q: What is the primary voltage rating?
A: The primary voltage is 35kV.
Q: What are the available power ratings?
A: Available capacities are 1000VA, 2000VA, and 3000VA.
Q: What standards does it comply with?
A: It complies with IEC 60076 and GB 1094.
Missing fields are marked [On Request] — never fabricated. M2/M5/M6 verification rows follow IEC 61869 / IEEE C57.13 conventions.
| Model | Rated voltage ratio (kV) | Accuracy classCombined | 220V winding rated output (VA) | 100V winding rated output (VA) | Weight (kg) |
|---|---|---|---|---|---|
| DC-1、2、3/35 | 35/0.22 | — | 1000, 2000, 3000 | — | 120 |
| DC-1、2、3/35 | 35/0.1/0.22 | 0.2, 0.5 | 1000, 2000, 3000 | 30, 60 | 120 |

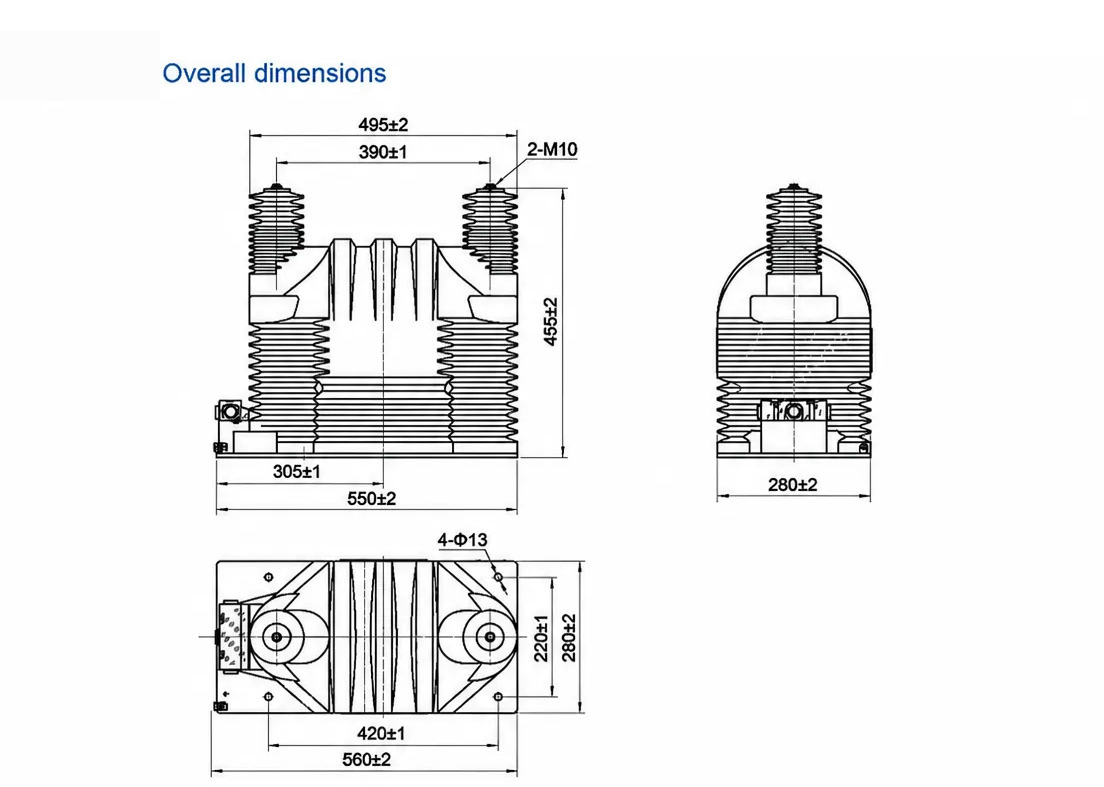

Dimension & outline drawing of DC-1-2-3-35 — click image to zoom / view original.
