Precision Instrument Transformers for Medium & Low Voltage Grids (0.5–35kV)

Precision Voltage Transformers for Critical Power Grids

Engineered for maximum dielectric reliability, tariff revenue metering precision (Class 0.1 / 0.2S), and extreme environmental withstand. Supplying national utilities, GIS substations, and heavy industrial plant infrastructure worldwide.

Accuracy ClassClass 0.1 / 0.2S
Testing LabKEMA Type Tested
Partial Discharge< 5pC @ 1.2Un
Global Export50+ Countries
Explore Product CatalogAI Spec Selector Studio

AI Smart RFQ Engine

Live B2B Agent

Describe your engineering requirements in natural language — AI extracts technical specs & matches models in 1 second.

Try sample queries:
Complete Instrument Transformer Matrix

High Precision Voltage & Current Transformers

DC-1,2,3/35 35kV Single-Phase Power Transformer for Pole-Mounted Switchgear
35kV
Current Transformer50/60Hz

DC-1-2-3-35

35kV Single-Phase Power Transformer for Pole-Mounted Switchgear

Outdoor pole-mounted single-phase power transformer for 35kV systems. 1000/2000/3000VA capacity options. Epoxy resin cast, high insulation level. Compliant with IEC 60076 and GB 1094 standards. Provides control power for 35kV switchgear.

Accuracy ClassOn request
Insulation TypeDry Epoxy Resin
Rated BurdenOn request
ComplianceIEC 60076
View Specs

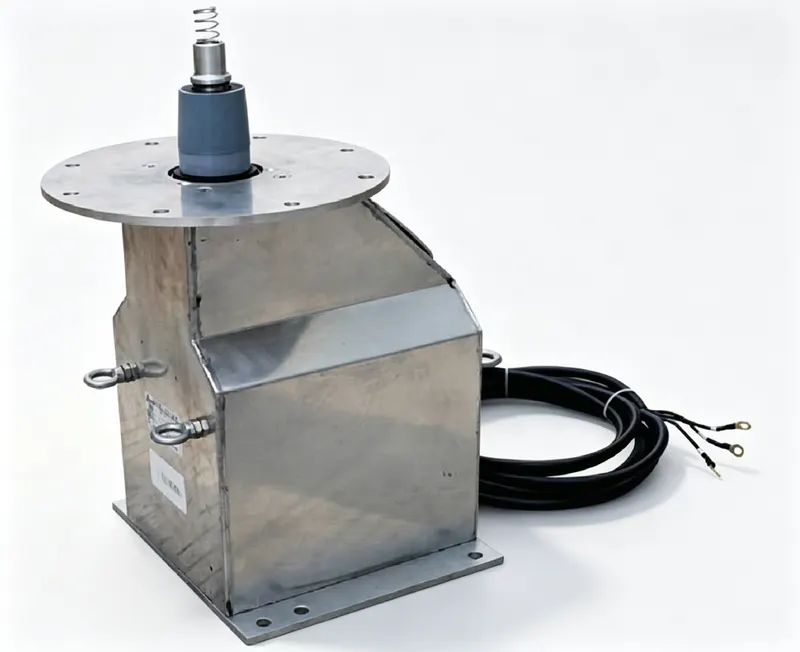

JDZXF15-35LR-CQ Indoor Single-phase Isolated Fuse-built-in Metal Armoured Epoxy Resin Casting Voltage Transformer
35kV
Voltage Transformer (VT) / Potential Transformer (PT)50Hz / 60Hz

JDZXF15-35LR-CQ

Indoor Single-phase Isolated Fuse-built-in Metal Armoured Epoxy Resin Casting Voltage Transformer

JDZXF15-35LR-CQ Indoor Single-phase Isolated Fuse-built-in Metal Armoured Epoxy Resin Casting Voltage Transformer is designed for metering and protection in power systems. Key ratings: primary voltage 35kV, secondary voltage 0.1kV, accuracy class 0.2/0.5/3P(6P), rated burden 30VA(0.2),40VA(0.5),40VA(1.0),100VA(3P). Design: insulation level 40.5/95/200kV, Dry Epoxy Resin, 50Hz / 60Hz operation.

Accuracy Class0.2/0.5/3P(6P)
Insulation TypeDry Epoxy Resin
Rated Burden30VA(0.2),40VA(0.5),40VA(1.0),100VA(3P)
View Specs
LMZ3-10 Indoor Single-phase Epoxy Resin Casting Current Transformer
10kV
Current Transformer50/60Hz

LMZ3-10

Indoor Single-phase Epoxy Resin Casting Current Transformer

LMZ3-10 Indoor Single-phase Epoxy Resin Casting Current Transformer is designed for metering and protection in power systems. Key ratings: primary voltage 10kV. Design: Dry Epoxy Resin, 50/60Hz operation.

Accuracy ClassOn request
Insulation TypeDry Epoxy Resin
Rated BurdenOn request
View Specs
JDZ18-6DR Indoor Single-phase Epoxy Resin Casting Voltage Transformer
6kV
Voltage Transformer (VT) / Potential Transformer (PT)50/60Hz

JDZ18-6DR

Indoor Single-phase Epoxy Resin Casting Voltage Transformer

JDZ18-6DR is an indoor single-phase epoxy resin casting voltage transformer for 6kV systems, with a rated voltage ratio of 6/0.1/0.22kV and insulation level 7.2/32/60kV. Accuracy-class rated outputs are 50VA (class 0.2), 100VA (class 0.5) and 150VA (class 1.0), with a maximum output of 1600VA; the unit weighs 70kg and operates at 50/60Hz in ambient temperatures from -5°C to +40°C. Design and testing follow GB/T 20840.1/3 and IEC 61869-1/3.

Accuracy Class0.2/0.5/1.0
Insulation TypeDry Epoxy Resin
Rated Burden50VA(0.2), 100VA(0.5), 150VA(1.0)
ComplianceGB/T 20840.1/3
View Specs
LJZN1-35 35kV Indoor Epoxy Cast Current Transformer for Grid Metering
35kV
Current Transformer50/60Hz

LJZN1-35

35kV Indoor Epoxy Cast Current Transformer for Grid Metering

35kV indoor epoxy resin cast current transformer for power grid metering. Dual windings for 0.2S high-precision metering and protection. Rated output 10-15VA, wide primary current range. Compliant with IEC 61869 and GB/T 20840 standards. Ultra-low partial discharge ensures long-term metering accuracy. Vacuum epoxy casting, compact pillar design, excellent insulation performance. Suitable for 35kV grid metering applications, customizable ratio.

Accuracy Class0.2S metering class
Insulation TypeDry Epoxy Resin
Rated Burden10-15VA
ComplianceIEC 61869
View Specs
JDZF10-35R Indoor Single-phase Epoxy Resin Casting Voltage Transformer
35kV
Voltage Transformer (VT) / Potential Transformer (PT)50Hz or 60Hz

JDZF10-35R

Indoor Single-phase Epoxy Resin Casting Voltage Transformer

JDZF10-35R Indoor Single-phase Epoxy Resin Casting Voltage Transformer is designed for metering and protection in power systems. Key ratings: primary voltage 35kV, secondary voltage 0.1kV, accuracy class 0.2, 0.5, rated burden 30VA / 30VA / 60VA. Design: insulation level 40.5/95/200kV, Dry Epoxy Resin, 50Hz or 60Hz operation.

Accuracy Class0.2, 0.5
Insulation TypeDry Epoxy Resin
Rated Burden30VA / 30VA / 60VA
View Specs
View All 382 Instrument Transformer Models
Electrical Grid Topology & Deployment

Where Potential Transformers Are Applied Across the Power Grid

From 35kV ring main units and metal-clad switchgear down to 0.66kV low-voltage distribution boards, potential transformers form the sensing layer of the grid — they deliver phase-accurate, galvanically isolated voltage to revenue meters, protection relays and SCADA, at every voltage class we build for.

Explore the PT catalogue
01 · 24–35 kV · Switchgear & RMUBIL 185 / 125kV

CT & VT for Ring Main Units

Vacuum-cast epoxy resin, dry-type

Cast epoxy resin dry-type current and voltage transformers for air-insulated switchgear, ring main units and CGIS cubicles.

  • Phase-to-earth 10/√3 kV : 0.1/√3 kV : 0.1/3 kV residual winding
  • Drops into KYN28, AIS and CGIS cubicles without primary adapters
  • ≤ 5 pC partial discharge at 1.2 Un, routine-tested on every unit
Accuracy / Burden:
0.2 / 0.5 / 3P · 30–60VA

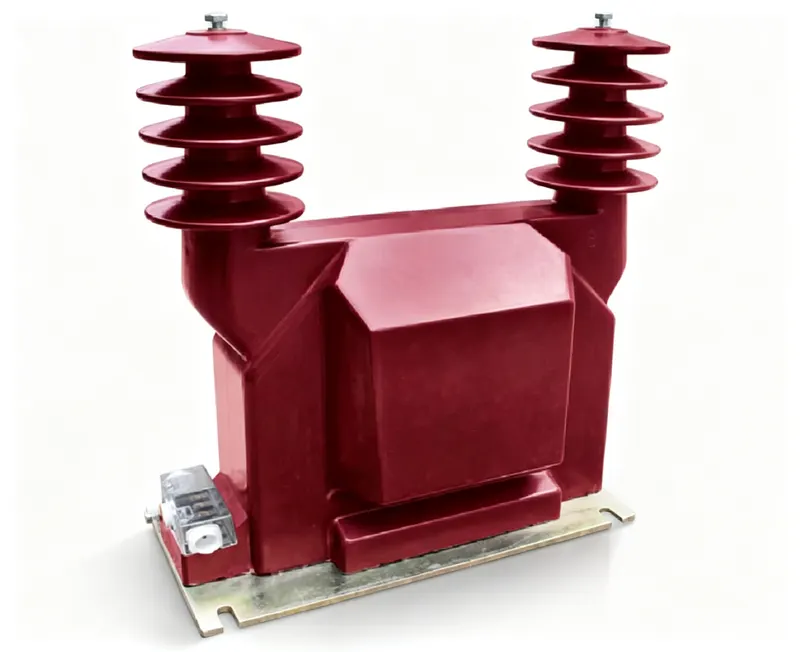

Model:JDZX11-35R·JDZF9-35Quote →
02 · 7.2–12 kV · Indoor DistributionBIL 95 / 60kV

Indoor Cast-Resin VTs & CTs

Vacuum-cast epoxy, UL94 V-0

Metering (class 0.2S) and protection windings for metal-clad panels in industrial and commercial distribution.

  • Class 0.2S metering cores for tariff and sub-billing
  • 3P / 6P protection cores for overcurrent and earth-fault relays
  • Sealed and maintenance-free — no oil or gas to handle
Accuracy / Burden:
0.2S / 0.5 / 3P · 15–50VA
Model:JDZ10-10
03 · 24–35 kV · OutdoorBIL 185 / 125kV

Outdoor Epoxy-Cast Units

Cycloaliphatic epoxy or silicone-rubber sheds

Pole-mounted breakers, outdoor ring main boxes and rural switchyards; pollution- and humidity-resistant.

  • Pollution class III–IV creepage for coastal and industrial air
  • UV-stable sheds rated −40 °C to +55 °C ambient
  • Bolt-on mounting for pole and bracket installation
Accuracy / Burden:
0.2 / 0.5 / 3P · 30–50VA
Model:JDZW-20
04 · ≤ 0.66 kV · Low VoltageBIL 4kV

Low-Voltage CTs

Busbar-type and split-core, class 0.5–1.0

0.66kV / 0.5kV busbar-type and split-core current transformers for LV metering.

  • Busbar and cable-through types for retrofit metering
  • Split-core clamp design for live installation
  • 0.66kV / 0.5kV insulation for LV distribution boards
Accuracy / Burden:
0.5 / 1.0 · 5–10VA
Model:LMK-0.66
How Potential Transformers Feed Substation Secondary Systems (100V / 110V Bus)Standardised secondary outputs: 100V · 100/√3V · 110V · 100/3V (residual)
01. Tariff Revenue Metering

Class 0.1 / 0.2S metering cores feed utility kWh meters and intertie billing recorders within ±0.1 % ratio error.

02. Distance & Voltage Relays

Class 3P / 6P windings drive numerical IEDs for impedance (ANSI 21) and under/over-voltage (ANSI 27/59) protection.

03. Synchrocheck & Paralleling

Compares magnitude, phase angle and frequency across the breaker before generator or ring-bus closing (ANSI 25).

04. Residual Voltage & Earth Fault

An open-delta tertiary (da–dn, 100/3V) detects neutral displacement 3U0 during single-phase-to-earth faults.

Technical Reference & Classification

Potential Transformers (PT): Working Principle, Insulation Types & Technical Specifications

Potential transformers — PT in IEEE C57.13, VT in IEC 61869-3 — are parallel-connected instrument transformers that step medium voltage down to a standardised, galvanically isolated secondary signal for metering, protection and SCADA. We build solid-insulation units only: vacuum-cast epoxy resin for indoor service and silicone rubber for outdoor service, 0.5–35kV.

Architecture 01·Rated voltage: 0.5 kV – 35 kV·Standards: IEC 61869-3, IEEE C57.13

Cast Epoxy Resin Potential Transformers

Dry-type medium voltage potential transformers designed for indoor metal-clad switchgear (KYN28, AIS) and ring main units. Maintenance-free, oil-free, flame-retardant and routine-tested for partial discharge.

  • Indoor MV switchgear panels and ring main units (RMU)
  • Industrial plant distribution and tariff metering
  • Wind and solar collector substations up to 35kV
  • Zero-sequence earth-fault detection via residual delta winding
Engineering Specification Summary
Primary voltage range:0.5 kV – 35 kV
Dielectric medium:Vacuum-cast cycloaliphatic / Bis-A epoxy
Accuracy classes:0.1 / 0.2 / 0.5 / 3P / 6P
Representative models
JDZX10-10JDZ10-35RJDZX11-35R
Browse cast resin PTRequest Factory Quote

Potential Transformers Technical Comparison (0.5kV – 35kV)

Read the IEC 61869-3 engineering guide
Potential transformer typeVoltage classMetering & protection accuracyInsulationTypical deployment
Indoor cast resin PT (JDZ / JDZX)0.5 – 35kV0.2 / 0.5 / 3P / 6PVacuum-cast epoxyMetal-clad switchgear, RMU, industrial plants
Outdoor silicone PT (JDZW / JDZXW)6 – 35kV0.2 / 0.5 / 3PSilicone rubber shedsPole-mounted feeders, solar and wind collectors
Combined CT + VT (JLSZ / JLSZV)6 – 35kV0.2S / 0.5 / 3PVacuum-cast epoxyCompact outdoor metering points, RMU
Low-voltage CT (LMK / LMZ / BH)≤ 0.66kV0.5 / 1.0Epoxy or ABS caseLV distribution boards, sub-metering
High-Voltage Testing Facility

State-of-the-Art High Voltage Laboratory & Testing

Every potential transformer leaving our Hong Kong manufacturing base undergoes rigorous dielectric and routine testing inside our fully shielded High-Voltage Faraday Cage Test Hall before export.

  • Impulse Voltage Test: Up to 1000kV lightning & switching impulse testing.
  • Partial Discharge (PD) Guarantee: Guaranteed < 5pC at 1.2 Un operating voltage.
  • KEMA Type Testing: Dynamic short-circuit withstand and thermal stability tested.
  • Seismic Protection: Earthquake withstand rating up to Zone IX (0.5g peak ground acceleration).
Learn More About Our Factory Strength

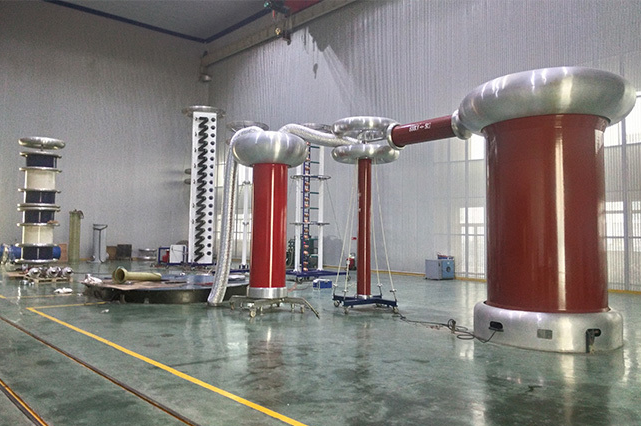

High Voltage Faraday Testing Lab
1000kV HV Faraday Testing HallOnline automated partial discharge diagnostic system
Substation Engineering & Procurement Guide

How to Specify Potential Transformers & Technical FAQ

Selecting a potential transformer for utility substations or OEM switchgear means matching the system earthing, the secondary burden and the creepage distance. The three parameters below decide most of the specification; the questions underneath are the ones our engineers answer most often.

Try the AI selection studio
01. Transformation Ratio & Winding Connection

Phase-to-Ground vs. Phase-to-Phase PTs

Single-pole earthed potential transformers (e.g. 10/√3 kV : 0.1/√3 kV : 0.1/3 kV) measure line-to-earth voltage and supply an open-delta residual tertiary winding for earth-fault relaying. Double-pole ungrounded PTs connect phase-to-phase in 3-wire V-V configurations.

02. Accuracy Class & Rated Burden (VA)

Tariff Revenue Metering vs. Relay Protection

Specify Class 0.1 / 0.2 or 0.2S for commercial revenue settlement and Class 0.5 for internal energy monitoring. Keep the connected secondary burden (meters, relays and pilot-wire losses) between 25 % and 100 % of the rated VA output (15VA – 500VA), or the ratio error drifts outside the class.

03. Rated Voltage Factor (Fv) & Creepage

Overvoltage Withstand & Pollution Level

Select a voltage factor of 1.2 continuous / 1.5 for 30 s in effectively earthed grids, or 1.2 continuous / 1.9 for 8 h in isolated or resonant-earthed networks. For coastal or desert substations, specify Pollution Level III–IV creepage distance (≥ 25–31 mm/kV).

Frequently Asked Questions About Potential Transformers

Potential transformers — also called voltage transformers or VTs — are precision, parallel-connected instrument transformers that step medium-voltage system voltage down to a safe, standardised secondary value (typically 100V, 100/√3V, 110V or 100/3V residual). They provide galvanic isolation between the grid and the low-voltage revenue meters, protective relays, synchroscopes and SCADA telemetry, while keeping ratio and phase-angle error inside the accuracy class.

Working principle & insulation types
