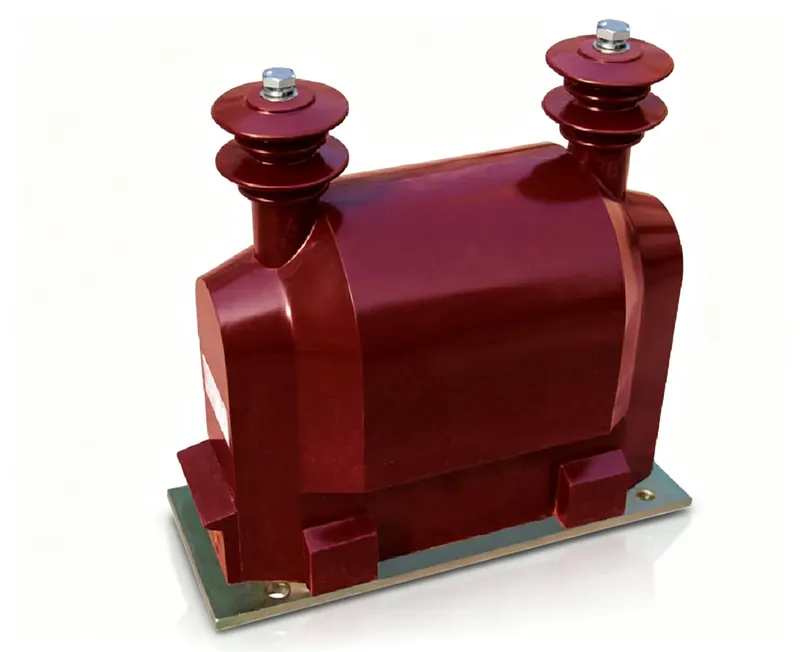

Outdoor pole-mounted single-phase power transformer for 20kV/15kV systems. 1000/2000/3000VA capacity options. Epoxy resin cast, weather-resistant design. Compliant with IEC 60076 standards. Provides control power for switchgear. Customizable voltage ratio.
Suitable for outdoor pole-mounted switchgear control power in 20kV/15kV systems, with customizable ratio and epoxy resin insulation.
| Parameter | Specification | Verification |
|---|---|---|
| Product Type | Power Transformer | IEC 60076, GB 1094 |
| Model Code | DC1-2-3-20-15 | Factory nameplate marking |
| Primary Voltage | 20kV/15kV | Rated voltage test (IEC 61869-1/3) |
| Secondary Voltage | [On Request] | Ratio check at rated frequency |
| Accuracy Class | [On Request] | Accuracy test (IEC 61869-2 / IEEE C57.13) |
| Rated Burden | [On Request] | Burden test at rated VA |
| Insulation Type | Dry Epoxy Resin | Dielectric tests per standard |
| Insulation Level (BIL) | [On Request] | Power-frequency & lightning impulse withstand |
| Standards | IEC 60076, GB 1094 | Certified to listed standards |
| Frequency | 50/60Hz | Per IEC 61869-1 |
| Environment | Outdoor pole-mounted single-phase epoxy resin cast | Per datasheet limits |
Ideal For
Not Recommended For
For power transformers, ground the secondary winding at one point. Follow IEC 60076 terminal markings: primary terminals H1/H2, secondary terminals X1/X2. Ensure proper fusing on primary and secondary sides. Never operate with secondary open-circuited if designed for parallel operation; consult manual.
Compliant with: IEC 60076, GB 1094
S_total = ΣS_instrument + I₂² × (ρ × 2L / A)
Q: What is the insulation level of this transformer?
A: The insulation level is not specified in the provided data; please refer to the datasheet or contact us for details.
Q: Can this transformer be used for indoor applications?
A: It is designed for outdoor pole-mounted use; indoor use may require additional enclosure and ventilation.
Q: What are the available capacity options?
A: The description mentions 1000/2000/3000VA options, but these are not listed in the provided specifications; please confirm availability.
Missing fields are marked [On Request] — never fabricated. M2/M5/M6 verification rows follow IEC 61869 / IEEE C57.13 conventions.
| Model | Rated voltage ratio (kV) | Accuracy classCombined | 220V winding rated output (VA) | 100V winding rated output (VA) | Weight (kg) |
|---|---|---|---|---|---|
| DC-1, 2/20 DC-1, 2/15 | 20/0.22 15/0.22 | — | 1000, 2000 | — | 93 |
| DC-1, 2/20 DC-1, 2/15 | 20/0.1/0.22 15/0.1/0.22 | 0.2, 0.5 | 1000, 2000 | 30, 60 | 93 |
| DC-3/20 DC-3/15 | 20/0.22 15/0.22 | — | 3000 | — | 93 |
| DC-3/20 DC-3/15 | 20/0.1/0.22 15/0.1/0.22 | 0.2, 0.5 | 3000 | 30, 60 | 93 |

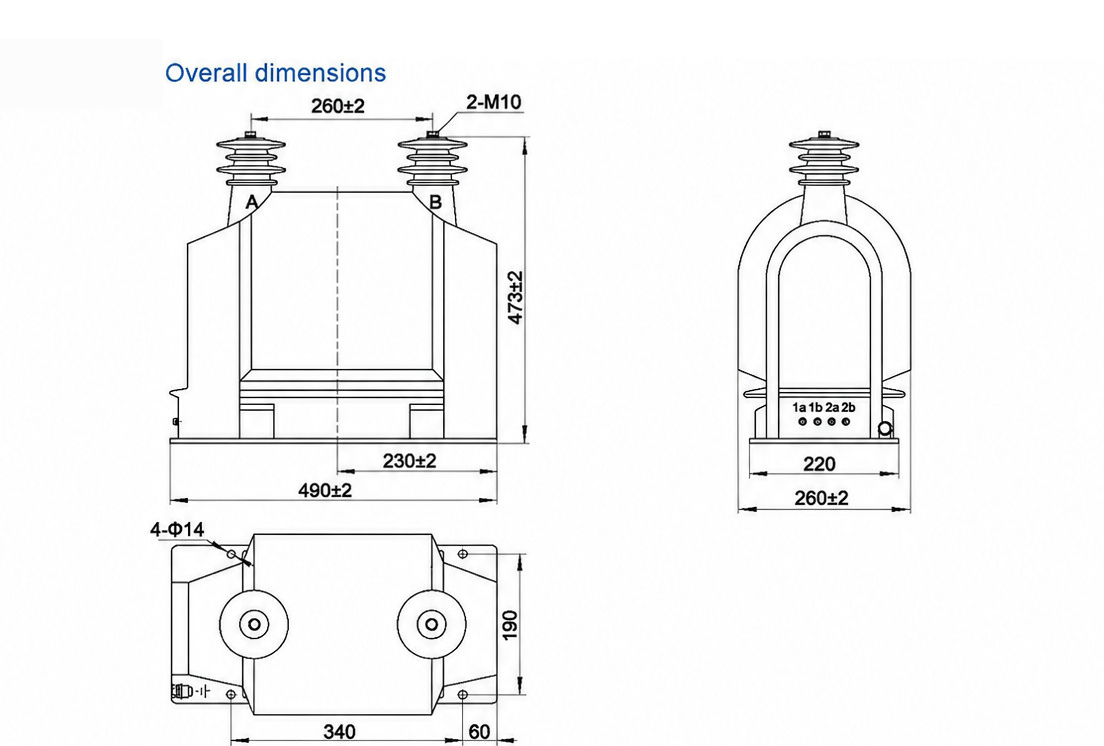

Dimension & outline drawing of DC1-2-3-20-15 — click image to zoom / view original.
