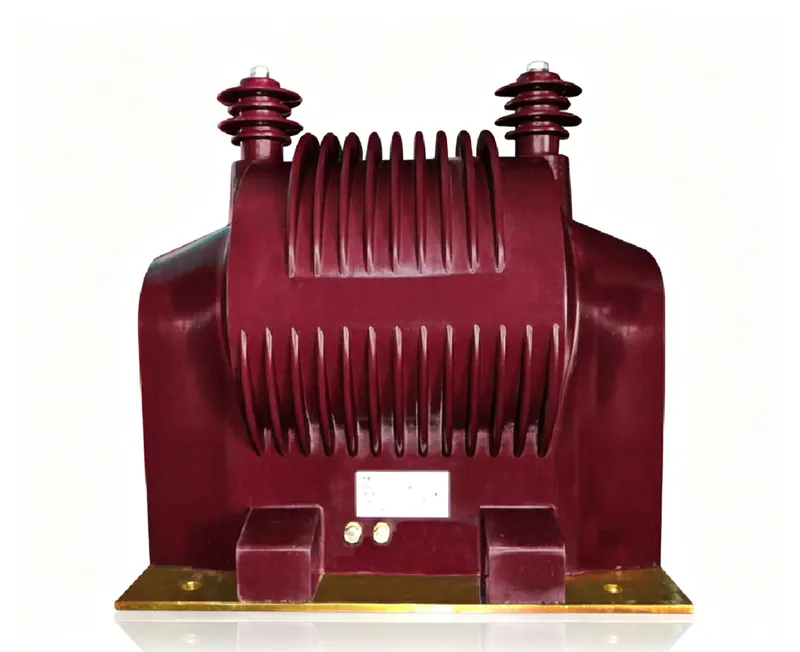

Outdoor pole-mounted single-phase power transformer, 10kV/6kV. 8000VA capacity, epoxy resin cast construction. Provides control power supply for pole-mounted switchgear. Compliant with IEC 60076 standards. Weather-resistant design, reliable outdoor performance.
Outdoor pole-mounted single-phase power transformer, 10kV/6kV, 8000VA, epoxy resin cast, for control power supply of pole-mounted switchgear.
| Parameter | Specification | Verification |
|---|---|---|
| Product Type | Power Transformer | IEC 60076, GB 1094 |
| Model Code | DC-8-10-6 | Factory nameplate marking |
| Primary Voltage | 10kV/6kV | Rated voltage test (IEC 61869-1/3) |
| Secondary Voltage | [On Request] | Ratio check at rated frequency |
| Accuracy Class | [On Request] | Accuracy test (IEC 61869-2 / IEEE C57.13) |
| Rated Burden | [On Request] | Burden test at rated VA |
| Insulation Type | Dry Epoxy Resin | Dielectric tests per standard |
| Insulation Level (BIL) | [On Request] | Power-frequency & lightning impulse withstand |
| Standards | IEC 60076, GB 1094 | Certified to listed standards |
| Frequency | 50/60Hz | Per IEC 61869-1 |
| Environment | Outdoor pole-mounted single-phase epoxy resin cast | Per datasheet limits |
Ideal For
Not Recommended For
For power transformers, ground the secondary winding at one point. Follow IEC 60076 terminal markings: primary terminals H1/H2, secondary terminals X1/X2. Ensure proper fusing on both primary and secondary sides. Never operate with secondary open-circuited while primary is energized.
Compliant with: IEC 60076, GB 1094
S_total = ΣS_instrument + I₂² × (ρ × 2L / A)
Q: What is the primary voltage rating?
A: The primary voltage is 10kV/6kV, selectable.
Q: What standards does this transformer comply with?
A: It complies with IEC 60076 and GB 1094.
Q: Is it suitable for indoor use?
A: No, it is designed for outdoor pole-mounted applications.
Missing fields are marked [On Request] — never fabricated. M2/M5/M6 verification rows follow IEC 61869 / IEEE C57.13 conventions.
| Model Type | Rated voltage ratio (kV) Rated voltage ratio | Accuracy classCombined Class combination | 220V winding rated output (VA) Rated capability of winding 220V | Weight (kg) Weight |
|---|---|---|---|---|
| DC-8/10 | 10/0.1/0.22 | 0.2 | 800 Impedance voltage drop <6% | 120 |
| DC-8/6 | 6/0.22 | 0.5 | 800 Impedance voltage drop <6% | 120 |

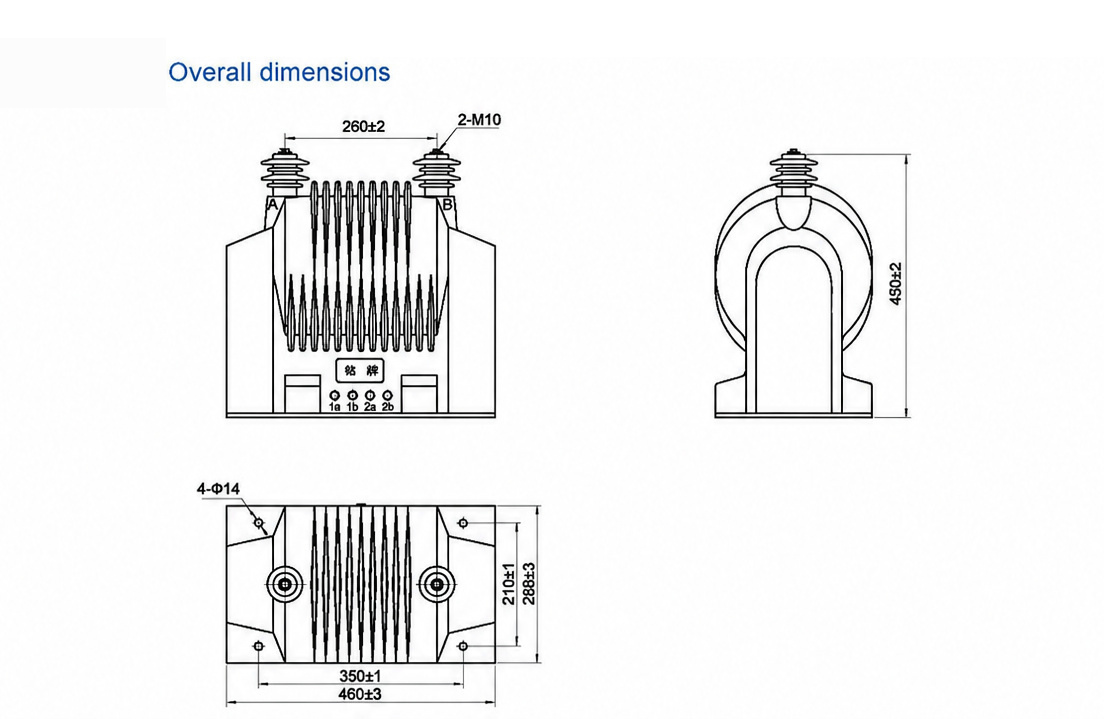

Dimension & outline drawing of DC-8-10-6 — click image to zoom / view original.
