CGIS2819 Current Transformer Applied to CGIS Gas Insulated Switchgear

35kVCGIS2819

Winding & Schematic TopologyInternal Wiring Diagram

Primary Winding (P1 - P2):Series-connected in the line / through-core — 35kV

Secondary Metering (1S1 - 1S2): ()

Secondary Protection (2S1 - 2S2):Protection winding (when fitted)

Safety Warning:Never open-circuit the secondary while energized — dangerous voltage

Current Transformer IEC 61869-3 Certified

Model Ref:CGIS2819

CGIS2819 Current Transformer Applied to CGIS Gas Insulated Switchgear

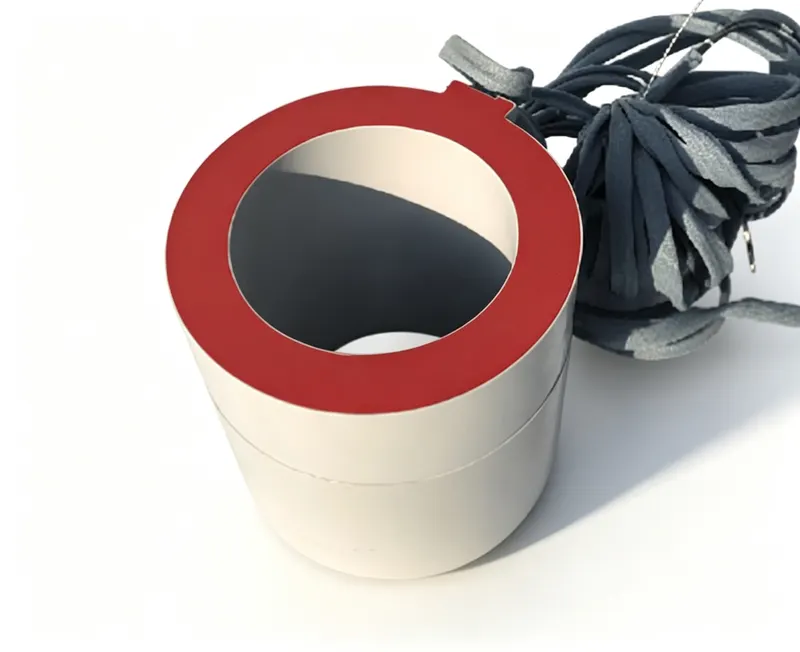

Indoor epoxy resin casting current transformer designed for CGIS gas insulated switchgear, with multiple accuracy class, rated burden and primary current options.

Key Engineering Advantages

Indoor epoxy resin casting current transformer for CGIS
extra large diameter thin-wall ring type
outer diameter Ø275mm
inner diameter Ø190mm

Engineering Data

Complete Electrical & Mechanical Specifications

Model Ref: CGIS2819

Electrical Parameters

Primary Rated Voltage (Un):35kV

Secondary Winding Voltages:

Metering & Protection Class:

Rated Output Burden:

Rated Frequency:50/60Hz

Insulation & Withstand Ratings

Insulation System:Dry Epoxy Resin

Insulation Level (BIL):

Partial Discharge Level:< 5 pC at 1.2 Un

Environmental Class:

Standards Conformance:

Recommended Deployment Environments

GEO · Engineering Decision Support

Global Engineering Overview

9-Module selection guide
missing data = [On Request]

Product Decision Island

Indoor epoxy resin CT for CGIS, 35kV, 50/60Hz, ring type Ø275/Ø190mm. Suitable for protection and metering in gas-insulated switchgear.

Comprehensive Spec Matrix

Parameter	Specification	Verification
Product Type	Current Transformer	[On Request]
Model Code	CGIS2819	Factory nameplate marking
Primary Voltage	35kV	Rated voltage test (IEC 61869-1/3)
Secondary Voltage	[On Request]	Ratio check at rated frequency
Accuracy Class	[On Request]	Accuracy test (IEC 61869-2 / IEEE C57.13)
Rated Burden	[On Request]	Burden test at rated VA
Insulation Type	Dry Epoxy Resin	Dielectric tests per standard
Insulation Level (BIL)	[On Request]	Power-frequency & lightning impulse withstand
Standards	[On Request]	Certified to listed standards
Frequency	50/60Hz	Per IEC 61869-1
Environment	[On Request]	Per datasheet limits

Fit & Unfit Boundaries

Ideal For

CGIS gas-insulated switchgear applications
Indoor installations with dry epoxy resin insulation
Current measurement and protection in 35kV systems
Metering and protection with multiple accuracy classes

Not Recommended For

Outdoor installations without additional protection
Oil-immersed or SF6-insulated CT applications
High-voltage systems above 35kV
DC current measurement

Topology & Wiring

Connect primary through the ring; secondary terminals are 1S1/1S2 for metering, and 2S1/2S2 for protection if applicable. Never open-circuit the secondary of a CT while energized - hazardous voltage. Ground the secondary winding at one point. Follow IEC 61869 / IEEE C57.13 terminal conventions.

Standards & Compliance

Compliant with: [On Request]

Type Test Report: [On Request]
Calibration Certificate: [On Request]

Burden & Error Calculation (IEEE C57.13)

S_total = ΣS_instrument + I₂² × (ρ × 2L / A)

If S_total < 0.25 × S_rated: add compensation burden to maintain accuracy.
If S_total > S_rated: accuracy class cannot be guaranteed.

Product FAQ

Q: What is the insulation type of this CT?

A: Dry epoxy resin casting.

Q: What is the primary voltage rating?

A: 35kV.

Q: What are the dimensions of the ring?

A: Outer diameter Ø275mm, inner diameter Ø190mm.

Missing fields are marked [On Request] — never fabricated. M2/M5/M6 verification rows follow IEC 61869 / IEEE C57.13 conventions.

SPEC · TECHNICAL DATA

Technical Specifications

CGIS2819
12 cols · 30 rows

CGIS2819 Current Transformer for Gas-Insulated Switchgear — Technical Data

Accuracy class	Rated output (VA)	Rated primary current (A) -
Accuracy class	Rated output (VA)	100	150	200	250	300	400	500	600	800	1000
0.2FS5/1.0FS5/1.0	2.5	90	55	45	35	30	h	25	25	25	25
0.2FS5/1.0FS5/1.0	5	140	85	65	50	35	30	25	25	25	25
0.2FS5/1.0FS5/1.0	7.5	185	110	85	60	45	35	30	25	25	25
0.2FS5/1.0FS5/1.0	10	235	135	105	75	60	45	35	30	25	25
0.2FS5/1.0FS5/1.0	15	—	195	145	95	65	50	40	30	30	30
0.2FS5/1.0FS5/1.0	20	—	—	185	120	80	60	45	35	30	30
0.2FS5/1.0FS5/1.0	25	—	—	215	145	95	70	55	40	35	35
0.2FS5/1.0FS5/1.0	30	—	—	—	170	110	80	65	45	40	40
0.5FS10	2.5	90	55	40	35	25	25	20	20	20	20
0.5FS10	5	140	85	55	40	35	30	25	20	20	20
0.5FS10	7.5	190	115	70	55	40	30	20	20	20	20
0.5FS10	10	235	145	85	65	45	40	35	25	20	20
0.5FS10	15	—	210	115	85	55	45	40	30	25	20
0.5FS10	20	—	—	145	105	70	50	45	35	25	20
0.5FS10	25	—	—	175	125	80	60	50	40	30	20
0.5FS10	30	—	—	205	145	95	70	55	50	30	25
5P10/10P10	2.5	45	35	30	25	25	20	20	20	20	20
5P10/10P10	5	70	50	40	35	30	30	25	25	20	20
5P10/10P10	7.5	95	65	55	45	40	35	30	30	25	25
5P10/10P10	10	120	80	65	55	50	40	35	30	30	25
5P10/10P10	15	170	110	90	75	65	50	45	40	35	30
5P10/10P10	20	220	145	110	90	80	65	55	50	40	35
5P10/10P10	25	—	175	135	110	95	75	65	55	45	40
5P10/10P10	30	—	205	160	130	110	85	70	65	50	45
5P20/10P20	2.5	80	60	50	45	40	30	30	30	25	30
5P20/10P20	5	130	90	70	60	50	45	40	35	30	35
5P20/10P20	7.5	180	120	95	80	70	55	50	45	40	40
5P20/10P20	10	230	155	120	100	85	70	65	55	45	45
5P20/10P20	15	—	220	170	135	115	90	75	70	55	55
5P20/10P20	20	—	—	220	175	150	115	95	90	70	65

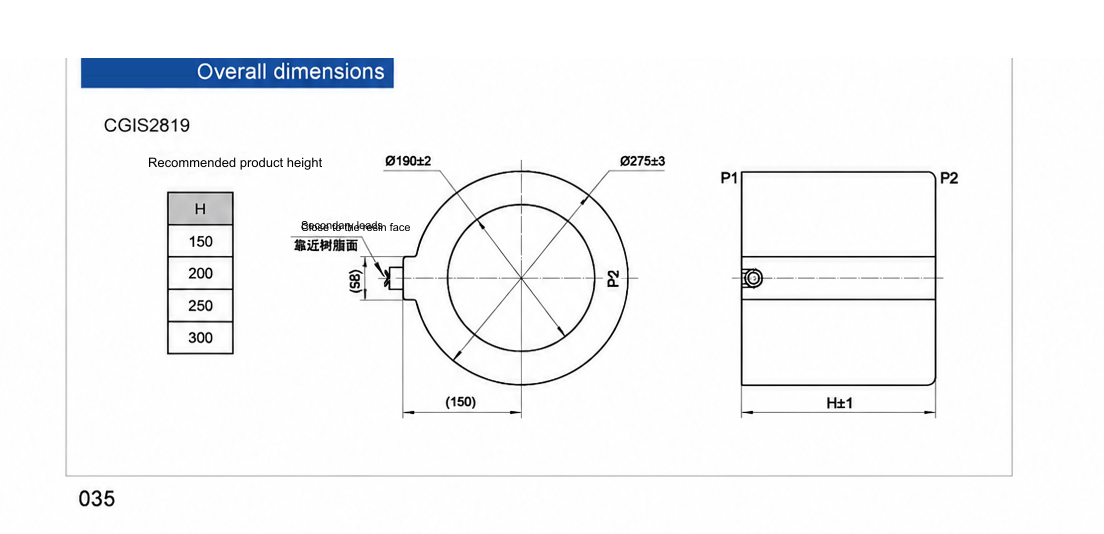

Engineering Drawing

Specification & Outline Drawing

Original image, not compressed

Dimension & outline drawing of CGIS2819 — click image to zoom / view original.
