Specialized current transformer for CGIS inflatable switchgear with multiple accuracy classes and abundant primary current specifications; secondary lead length and stacked product height support customized production.

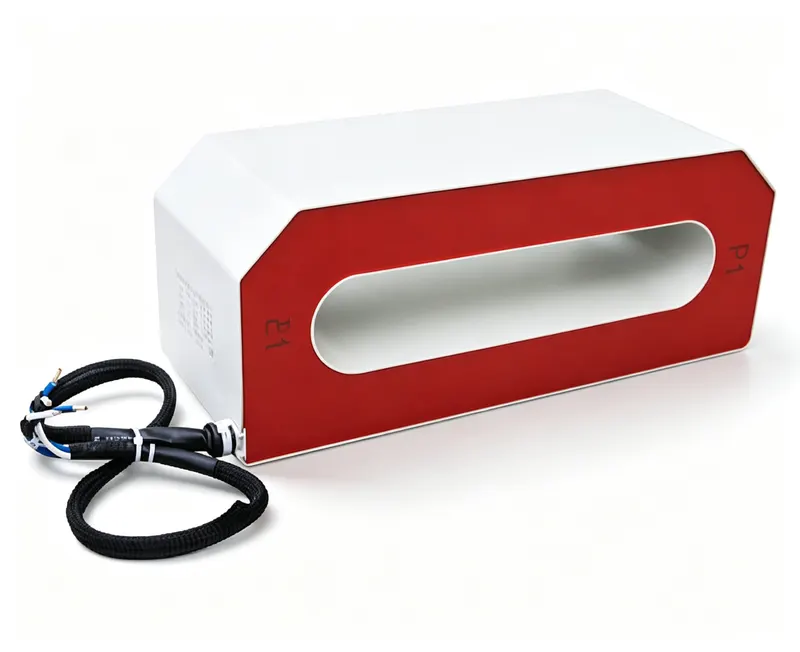

CGIS5008 is a dry epoxy resin current transformer for 35kV inflatable switchgear, offering multiple accuracy classes and customizable secondary leads. It is suitable for indoor RMU applications where space is constrained.
| Parameter | Specification | Verification |
|---|---|---|
| Product Type | Current Transformer | [On Request] |
| Model Code | CGIS5008 | Factory nameplate marking |
| Primary Voltage | 35kV | Rated voltage test (IEC 61869-1/3) |
| Secondary Voltage | [On Request] | Ratio check at rated frequency |
| Accuracy Class | [On Request] | Accuracy test (IEC 61869-2 / IEEE C57.13) |
| Rated Burden | [On Request] | Burden test at rated VA |
| Insulation Type | Dry Epoxy Resin | Dielectric tests per standard |
| Insulation Level (BIL) | [On Request] | Power-frequency & lightning impulse withstand |
| Standards | [On Request] | Certified to listed standards |
| Frequency | 50/60Hz | Per IEC 61869-1 |
| Environment | [On Request] | Per datasheet limits |
Ideal For
Not Recommended For
Connect secondary terminals 1S1 and 1S2 for the main metering/protection winding; if a second winding exists, use 2S1-2S2. Never open-circuit the secondary of a CT while energized - hazardous voltage. Ground the secondary circuit at one point only, preferably at the switchgear earth bar. Ensure shorting and grounding facilities are provided before disconnecting the CT from the load.
Compliant with: [On Request]
S_total = ΣS_instrument + I₂² × (ρ × 2L / A)
Q: What is the insulation type of CGIS5008?
A: It uses dry epoxy resin insulation, suitable for indoor applications.
Q: Can the secondary lead length be customized?
A: Yes, secondary lead parameters are customizable as per requirements.
Q: What is the rated frequency range?
A: It operates at 50/60Hz.
Missing fields are marked [On Request] — never fabricated. M2/M5/M6 verification rows follow IEC 61869 / IEEE C57.13 conventions.
| Accuracy class | Rated output (VA) | Rated primary current (A) | |||||
|---|---|---|---|---|---|---|---|
| 750 | 1000 | 1200 | 1500 | 2000 | 2500 | ||
| 0.2FS10 | 5 | 30 | 30 | 30 | 30 | 30 | 35 |
| 0.2FS10 | 10 | 30 | 30 | 30 | 30 | 30 | 35 |
| 0.2FS10 | 15 | 30 | 30 | 30 | 30 | 30 | 35 |
| 0.2FS10 | 20 | 35 | 30 | 30 | 30 | 30 | 35 |
| 0.2FS10 | 25 | 40 | 30 | 30 | 30 | 30 | 35 |
| 0.2FS10 | 30 | 40 | 35 | 30 | 30 | 30 | 35 |
| 0.5FS10 | 5 | 30 | 30 | 25 | 25 | 25 | 30 |
| 0.5FS10 | 10 | 30 | 30 | 25 | 25 | 25 | 30 |
| 0.5FS10 | 15 | 30 | 30 | 25 | 25 | 25 | 30 |
| 0.5FS10 | 20 | 30 | 30 | 25 | 25 | 25 | 30 |
| 0.5FS10 | 25 | 30 | 30 | 25 | 25 | 25 | 30 |
| 0.5FS10 | 30 | 35 | 30 | 35 | 25 | 25 | 30 |
| 5P10 | 5 | 30 | 25 | 25 | 25 | 25 | 25 |
| 5P10 | 10 | 30 | 30 | 30 | 30 | 30 | 30 |
| 5P10 | 15 | 40 | 35 | 35 | 30 | 30 | 30 |
| 5P10 | 20 | 50 | 40 | 40 | 35 | 30 | 30 |
| 10P10 | 5 | 25 | 25 | 25 | 25 | 25 | 25 |
| 10P10 | 10 | 40 | 35 | 35 | 35 | 35 | 35 |
| 10P10 | 15 | 55 | 45 | 40 | 35 | 35 | 35 |
| 10P10 | 20 | 80 | 50 | 45 | 40 | 35 | 35 |
| 5P15 | 5 | 25 | 25 | 25 | 25 | 25 | 25 |
| 5P15 | 10 | 45 | 40 | 35 | 35 | 30 | 30 |
| 5P15 | 15 | 55 | 45 | 40 | 35 | 35 | 35 |
| 5P15 | 20 | 65 | 55 | 50 | 45 | 40 | 35 |
| 5P15 | 25 | 75 | 60 | 55 | 45 | 40 | 35 |
| 5P15 | 30 | 85 | 70 | 60 | 55 | 45 | 40 |
| 5P20 | 5 | 40 | 35 | 35 | 30 | 30 | 30 |
| 5P20 | 10 | 55 | 50 | 45 | 35 | 35 | 35 |
| 5P20 | 15 | 65 | 60 | 50 | 40 | 40 | 40 |
| 5P20 | 20 | 80 | 65 | 60 | 45 | 45 | 40 |
| 5P20 | 25 | 95 | 75 | 70 | 50 | 45 | 45 |
| 5P20 | 30 | 105 | 85 | 75 | 65 | 55 | 50 |
| 5P30 | 5 | 50 | 45 | 45 | 40 | 40 | 40 |
| 5P30 | 10 | 75 | 65 | 60 | 55 | 45 | 45 |
| 5P30 | 15 | 95 | 80 | 70 | 65 | 55 | 50 |
| 5P30 | 20 | 115 | 95 | 85 | 75 | 60 | 60 |
| 5P30 | 25 | 140 | 115 | 100 | 85 | 70 | 65 |
| 5P30 | 30 | 180 | 130 | 115 | 95 | 75 | 70 |

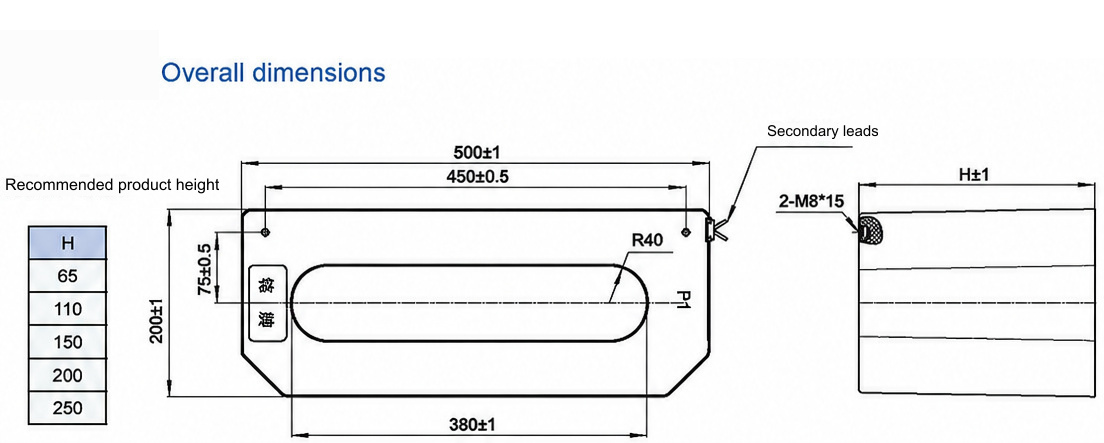

Dimension & outline drawing of CGIS5008 — click image to zoom / view original.
