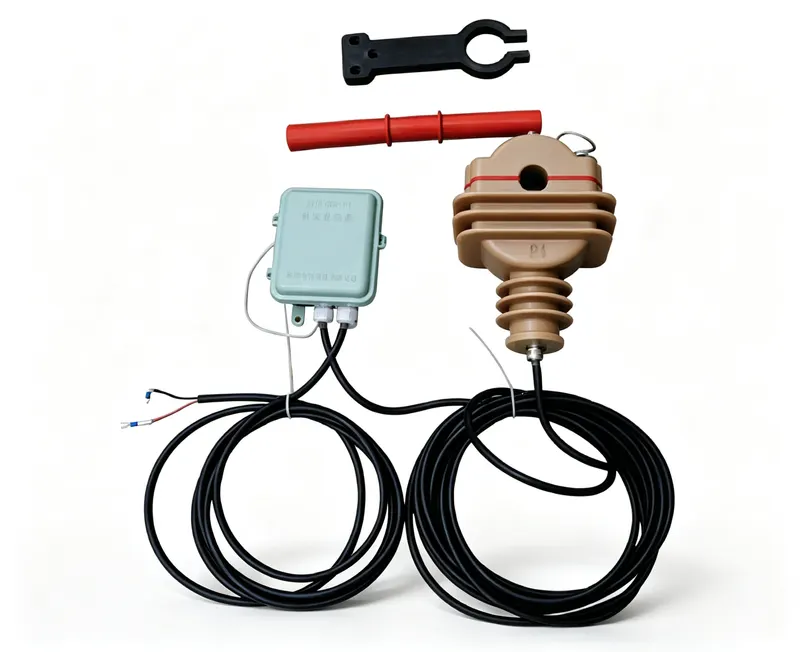

Outdoor split-core current transformer, 10kV, model KXLW-10G. Install directly on cables or conductors without cutting. Hot-line installation possible with HV cables. Outdoor resin casting, UV resistant, -40°C to +40°C. With open-circuit protection, creepage >500mm. Compliant with IEC 61869 and GB/T 20840 standards.
KXLW-10G is a 10kV outdoor split-core current transformer for metering and protection, suitable for hot-line installation on cables or conductors.
| Parameter | Specification | Verification |
|---|---|---|
| Product Type | Current Transformer | IEC 61869, GB/T 20840 |
| Model Code | KXLW-10G | Factory nameplate marking |
| Primary Voltage | 10kV | Rated voltage test (IEC 61869-1/3) |
| Secondary Voltage | [On Request] | Ratio check at rated frequency |
| Accuracy Class | [On Request] | Accuracy test (IEC 61869-2 / IEEE C57.13) |
| Rated Burden | [On Request] | Burden test at rated VA |
| Insulation Type | Dry Epoxy Resin | Dielectric tests per standard |
| Insulation Level (BIL) | 12/42/75kV | Power-frequency & lightning impulse withstand |
| Standards | IEC 61869, GB/T 20840 | Certified to listed standards |
| Frequency | 50/60Hz | Per IEC 61869-1 |
| Environment | Ambient: -40°C ~ +40°C | Per datasheet limits |
Ideal For
Not Recommended For
Connect primary conductor through the split-core. Secondary terminals: 1S1 and 1S2 for metering winding; if dual-winding, protection winding uses 2S1 and 2S2. Never open-circuit the secondary of a CT while energized - hazardous voltage. Ground the secondary winding at one point. Follow IEC 61869-2 and GB/T 20840.2 terminal markings.
Compliant with: IEC 61869, GB/T 20840
S_total = ΣS_instrument + I₂² × (ρ × 2L / A)
Q: What is the insulation level of KXLW-10G?
A: The insulation level is 12/42/75kV, meaning 12kV maximum system voltage, 42kV power-frequency withstand, and 75kV lightning impulse withstand.
Q: Can KXLW-10G be installed on live cables?
A: Yes, it is designed for hot-line installation on HV cables without cutting, thanks to its split-core design.
Q: What standards does KXLW-10G comply with?
A: It complies with IEC 61869 and GB/T 20840 standards.
Missing fields are marked [On Request] — never fabricated. M2/M5/M6 verification rows follow IEC 61869 / IEEE C57.13 conventions.
| Parameter | Value |
|---|---|
| Product performance complies with standards | GB/T20840.1, 2 and IEC61869-1, 2 |
| Rated insulation level | 12/42/75kV |
| Rated frequency | 50Hz or 60Hz |
| Ambient temperature | -40℃~+40℃ |
| Altitude | Not exceeding 3000 m |
| Rated primary current | 100~600A |
| Rated secondary current | 5A or 1A |
| Rated output | 2.5~5VA (with 2×2.5mm² cable10 m) |
| Creepage distance | >500mm |
| with open-circuit protection | — |

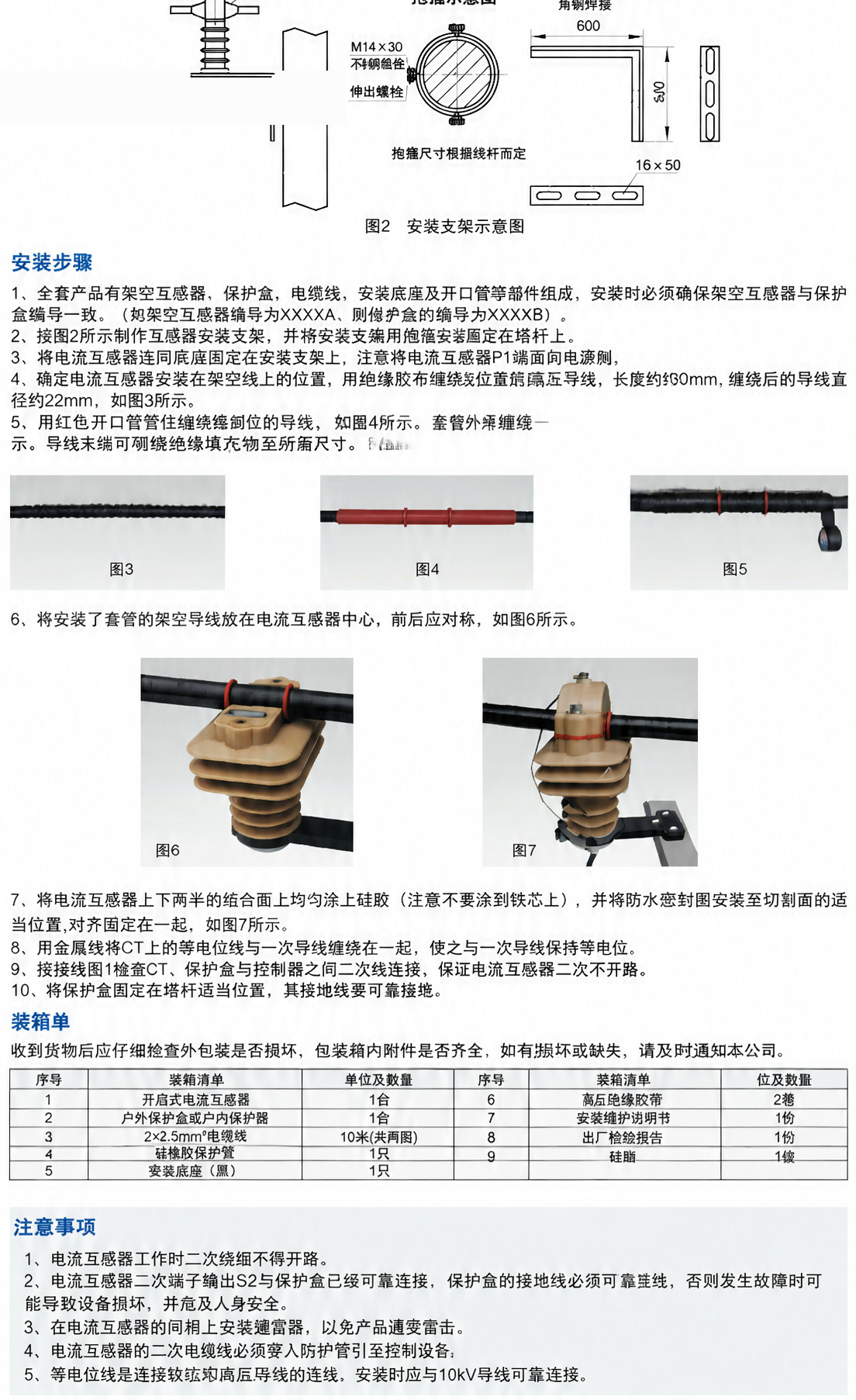

Dimension & outline drawing of KXLW-10G — click image to zoom / view original.
