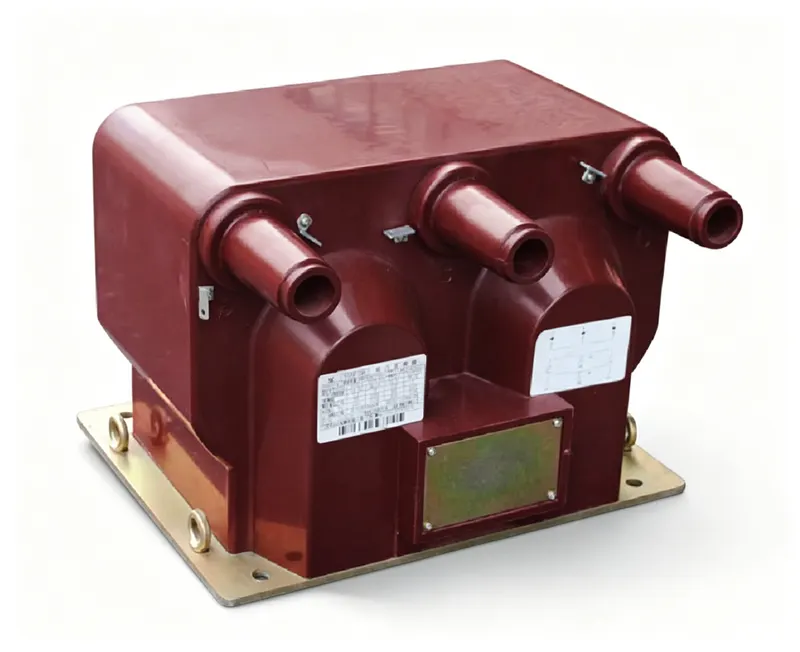

Indoor single-phase epoxy resin casting current transformer complying with GB/T20840.1/2 and IEC61869-1/2 standards, insulation level 12/42/75kV, rated frequency 50/60Hz, secondary rated current 5A or 1A. Optional primary current ranges:20-100A、150A、200-300A、400-800A、1000-1250A; accuracy combination 0.2S/5P、0.5S/5P with rated output 15VA/20VA/30VA. Short-time thermal current 150I₁ₙ, dynamic stable current 375I₁ₙ, net weight 23kg, operating ambient temperature -5℃~+40℃.
Indoor 10kV current transformer for protection and metering, rated secondary 5A/1A, epoxy cast, IEC 61869 compliant.
| Parameter | Specification | Verification |
|---|---|---|
| Product Type | Current Transformer | [On Request] |
| Model Code | LFZJ3-10 | Factory nameplate marking |
| Primary Voltage | 10kV | Rated voltage test (IEC 61869-1/3) |
| Secondary Voltage | 5A/1A | Ratio check at rated frequency |
| Accuracy Class | [On Request] | Accuracy test (IEC 61869-2 / IEEE C57.13) |
| Rated Burden | [On Request] | Burden test at rated VA |
| Insulation Type | Dry Epoxy Resin | Dielectric tests per standard |
| Insulation Level (BIL) | 12/42/75kV | Power-frequency & lightning impulse withstand |
| Standards | [On Request] | Certified to listed standards |
| Frequency | 50/60Hz | Per IEC 61869-1 |
| Environment | Ambient: -5℃~+40℃ | Per datasheet limits |
Ideal For
Not Recommended For
connect primary in series with line. Secondary terminals: 1S1/1S2 for metering, 2S1/2S2 for protection. Never open-circuit the secondary of a CT while energized - hazardous voltage. Ground one point of secondary circuit. Insulation level: 12kV system; power-frequency withstand 42kV; lightning impulse withstand 75kV peak.
Compliant with: [On Request]
S_total = ΣS_instrument + I₂² × (ρ × 2L / A)
Q: What are the accuracy classes available?
A: 0.2S/5P and 0.5S/5P with rated outputs 15VA/20VA/30VA.
Q: What is the short-time thermal current rating?
A: 150I₁ₙ, with dynamic stable current 375I₁ₙ.
Q: Is it suitable for outdoor use?
A: No, it is designed for indoor applications only.
Missing fields are marked [On Request] — never fabricated. M2/M5/M6 verification rows follow IEC 61869 / IEEE C57.13 conventions.
| Rated primary current (A) | Accuracy classCombined | Accuracy class & rated output (VA) 0.2 (S) | Accuracy class & rated output (VA) 0.5 (S) | Accuracy class & rated output (VA) 5P10 | Short-time thermal current (kA) | Rated dynamic current (kA) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 20-100 | 0.2(S)/5P 0.5(S)/5P | 10 | 10 | 15 | 150/1r | 375/1r | 19 |
| 150 | 0.2(S)/5P 0.5(S)/5P | 10 | 10 | 15 | 15 | 40 | 19 |
| 200-300 | 0.2(S)/5P 0.5(S)/5P | 10 | 10 | 15 | 20 | 50 | 19 |
| 400-600 | 0.2(S)/5P 0.5(S)/5P | 10 | 10 | 15 | 31.5 | 80 | 19 |
| 1000-1250 | 0.2(S)/5P 0.5(S)/5P | 15 | 20 | 25 | 40 | 100 | 19 |

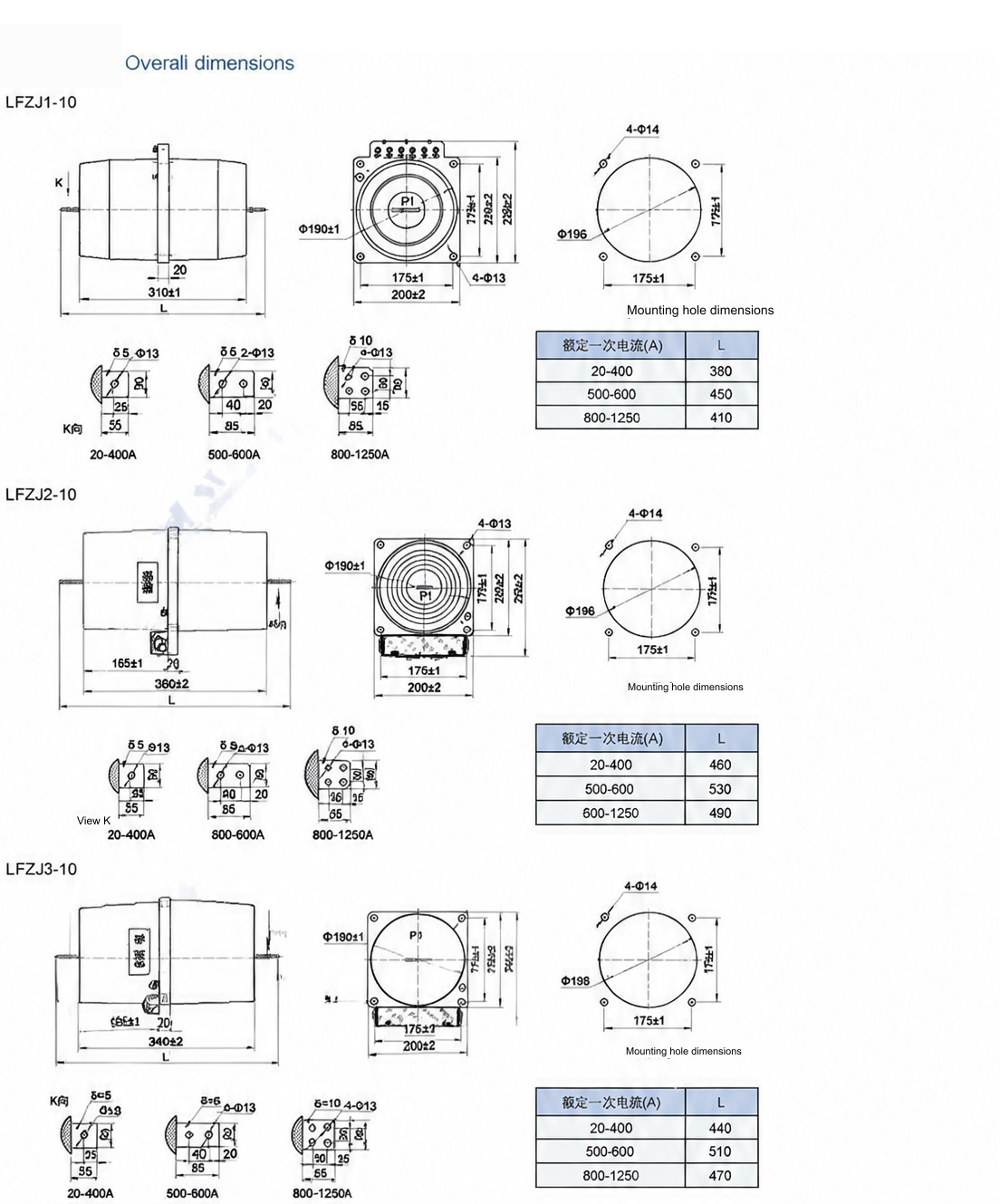

Dimension & outline drawing of LFZJ3-10 — click image to zoom / view original.
