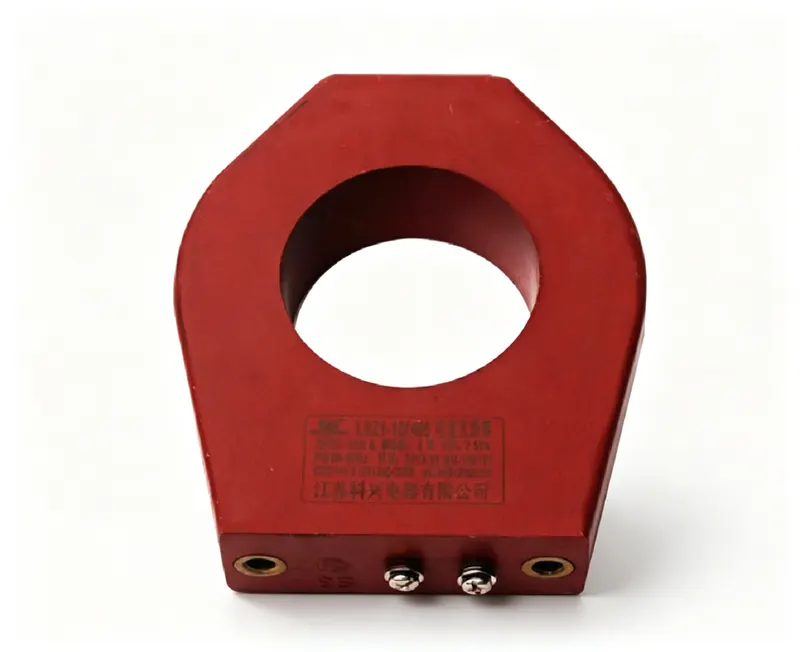

Low voltage indoor epoxy resin cast current transformer, rated 0.72/3kV. Suitable for low voltage distribution systems. Rated frequency 50/60Hz, secondary current 5A or 1A. Ambient temperature range -40°C to +40°C. Compliant with IEC 61869 and GB/T 20840 standards. Epoxy resin cast construction, reliable performance, easy installation. Customizable current ratio and accuracy class.
LRZ-10 is a low-voltage indoor current transformer for metering and protection in LV distribution systems, with secondary ratings of 5A or 1A.
| Parameter | Specification | Verification |
|---|---|---|
| Product Type | Current Transformer | IEC 61869, GB/T 20840 |
| Model Code | LRZ-10 | Factory nameplate marking |
| Primary Voltage | 0.72/3kV | Rated voltage test (IEC 61869-1/3) |
| Secondary Voltage | 5A or 1A | Ratio check at rated frequency |
| Accuracy Class | [On Request] | Accuracy test (IEC 61869-2 / IEEE C57.13) |
| Rated Burden | [On Request] | Burden test at rated VA |
| Insulation Type | Dry Epoxy Resin | Dielectric tests per standard |
| Insulation Level (BIL) | [On Request] | Power-frequency & lightning impulse withstand |
| Standards | IEC 61869, GB/T 20840 | Certified to listed standards |
| Frequency | 50/60Hz | Per IEC 61869-1 |
| Environment | Indoor epoxy resin cast; Ambient: -40°C ~ +40°C | Per datasheet limits |
Ideal For
Not Recommended For
For current transformers: Connect primary winding in series with the line. Secondary terminals are 1S1 and 1S2 for the main winding; if a protection winding exists, use 2S1-2S2. Never open-circuit the secondary of a CT while energized - hazardous voltage. Ground the secondary winding at one point. Ensure correct polarity for metering and protection.
Compliant with: IEC 61869, GB/T 20840
S_total = ΣS_instrument + I₂² × (ρ × 2L / A)
Q: What is the primary voltage rating of LRZ-10?
A: The primary voltage rating is 0.72/3kV, suitable for low voltage systems.
Q: What secondary currents are available?
A: Secondary current options are 5A or 1A.
Q: Is LRZ-10 suitable for outdoor use?
A: No, it is designed for indoor use with epoxy resin cast insulation.
Missing fields are marked [On Request] — never fabricated. M2/M5/M6 verification rows follow IEC 61869 / IEEE C57.13 conventions.
| Parameter | Value |
|---|---|
| Product performance complies with standards | GB/T20840.1, 2 and IEC61869-1, 2 standards |
| Rated voltage | 0.72/3kV |
| Rated frequency | 50Hz or 60Hz |
| Rated secondary current | 5A or 1A |
| Ambient temperature | -40℃~+40℃ |

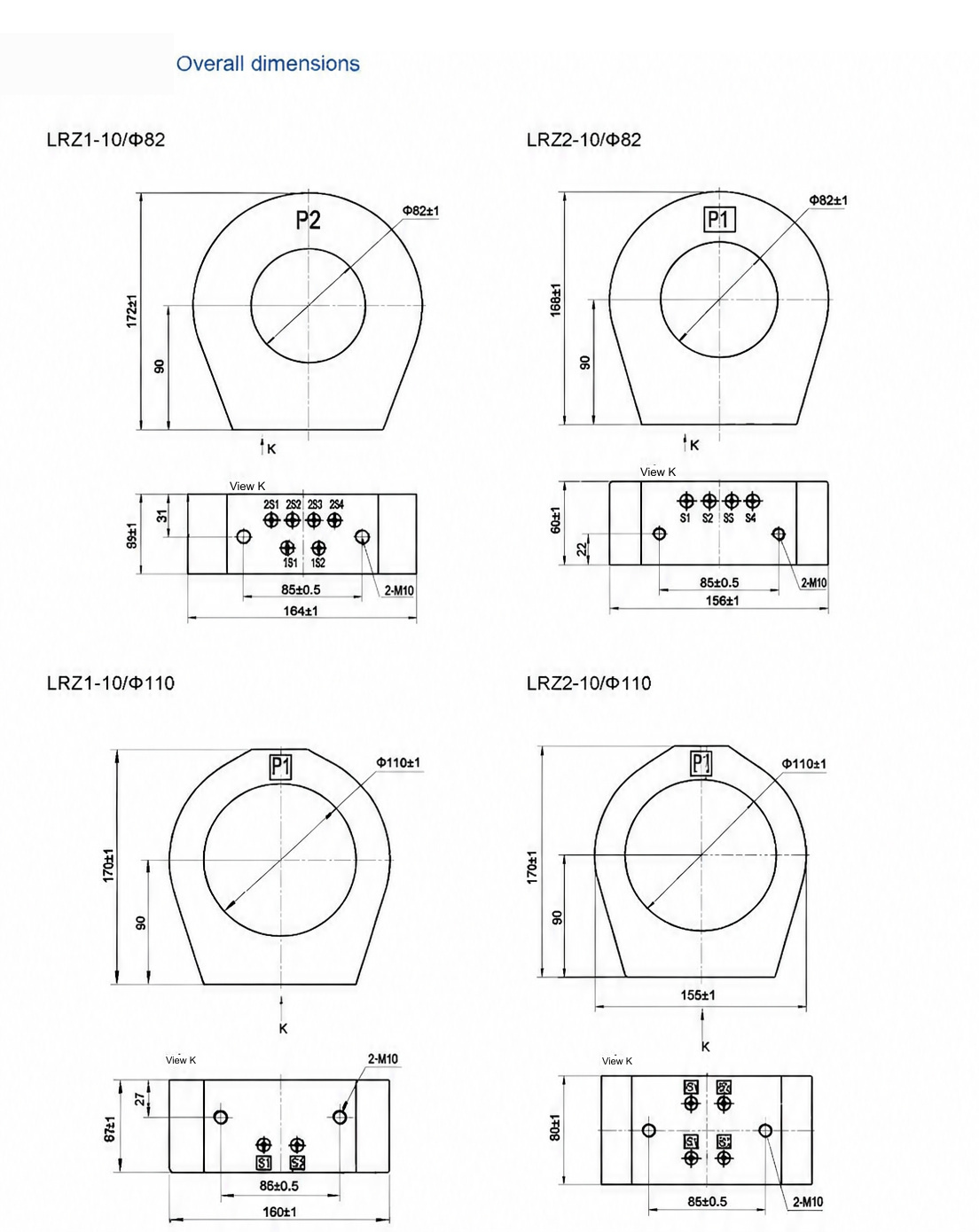

Dimension & outline drawing of LRZ-10 — click image to zoom / view original.
