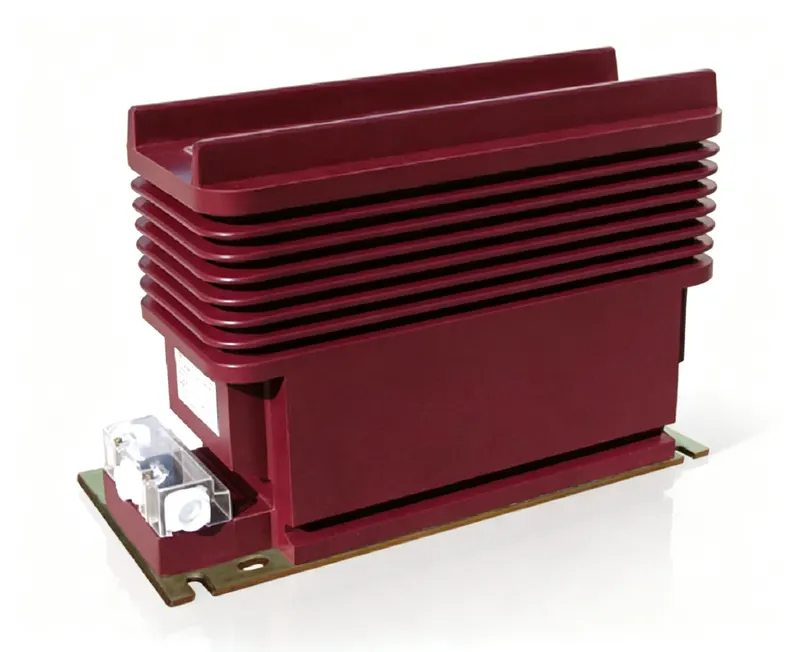

Indoor single-phase epoxy resin casting current transformer complying with GB/T20840.1/2 and IEC61869-1/2 standards; rated insulation level 24/65/125kV, rated frequency 50/60Hz, rated secondary current 5A or 1A. Two optional structures: 2s and 4s; primary current optional range 20-2500A. For 2s type: rated output 10-20VA under different accuracy grades, weight 36kg; for 4s type: rated output 15-20VA under different accuracy grades, weight 50kg; short-time thermal current:31.5-100kA, rated dynamic stable current:80-160kA; ambient operating temperature -5℃~+40℃.
Indoor 24kV epoxy cast CT for MV switchgear, suitable for metering and protection up to 2500A.
| Parameter | Specification | Verification |
|---|---|---|
| Product Type | Current Transformer | [On Request] |
| Model Code | LZZBJ9-24-180b-2s-4s | Factory nameplate marking |
| Primary Voltage | 10kV | Rated voltage test (IEC 61869-1/3) |
| Secondary Voltage | 5A/1A | Ratio check at rated frequency |
| Accuracy Class | [On Request] | Accuracy test (IEC 61869-2 / IEEE C57.13) |
| Rated Burden | [On Request] | Burden test at rated VA |
| Insulation Type | Dry Epoxy Resin | Dielectric tests per standard |
| Insulation Level (BIL) | 12/42/75kV | Power-frequency & lightning impulse withstand |
| Standards | [On Request] | Certified to listed standards |
| Frequency | 50/60Hz | Per IEC 61869-1 |
| Environment | Ambient: -5℃~+40℃ | Per datasheet limits |
Ideal For
Not Recommended For
Connect primary through the bushing. Secondary terminals: 1S1-1S2 for metering, 2S1-2S2 for protection (if present). Never open-circuit the secondary of a CT while energized - hazardous voltage. Ground the secondary winding at one point. Follow IEC 61869-2 terminal markings.
Compliant with: [On Request]
S_total = ΣS_instrument + I₂² × (ρ × 2L / A)
Q: What is the rated insulation level?
A: The insulation level is 24/65/125kV, meaning 24kV system voltage, 65kV power-frequency withstand, 125kV lightning impulse withstand.
Q: Can it be used outdoors?
A: No, it is designed for indoor use only; outdoor use requires additional weatherproof enclosure.
Q: What are the available secondary currents?
A: Secondary current is 5A or 1A, as specified.
Missing fields are marked [On Request] — never fabricated. M2/M5/M6 verification rows follow IEC 61869 / IEEE C57.13 conventions.
| Rated primary current (A) | Accuracy classCombined | Accuracy class & rated output (VA) 0.2/5 | Accuracy class & rated output (VA) 0.5/5 | Accuracy class & rated output (VA) 10P10 | Accuracy class & rated output (VA) 10P15 | Accuracy class & rated output (VA) 10P20 | Short-time thermal current (kA/s) | Rated dynamic current (kA) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 20-200 | 0.2(5)/0.2(5) 0.2(5)/0.5 0.2(5)/5P10 0.5/5P10 | 10 | 10 | 15 | 15 | 15 | 150 | 375 | 36 |
| 300 | 0.2(5)/0.2(5) 0.2(5)/0.5 0.2(5)/5P10 0.5/5P10 | 10 | 10 | 15 | 15 | 15 | 31.5 | 80 | 36 |
| 400-500 | 0.2(5)/0.2(5) 0.2(5)/0.5 0.2(5)/5P10 0.5/5P10 | 10 | 10 | 15 | 15 | 15 | 45 | 110 | 36 |
| 600-800 | 0.2(5)/0.2(5) 0.2(5)/0.5 0.2(5)/5P10 0.5/5P10 | 10 | 10 | 15 | 15 | 15 | 63 | 130 | 36 |
| 1000-1250 | 0.2(5)/0.2(5) 0.2(5)/0.5 0.2(5)/5P10 0.5/5P10 | 15 | 15 | 20 | 20 | 20 | 80 | 160 | 36 |
| 1500-2500 | 0.2(5)/0.2(5) 0.2(5)/0.5 0.2(5)/5P10 0.5/5P10 | 15 | 15 | 20 | 20 | 20 | 100 | 160 | 36 |

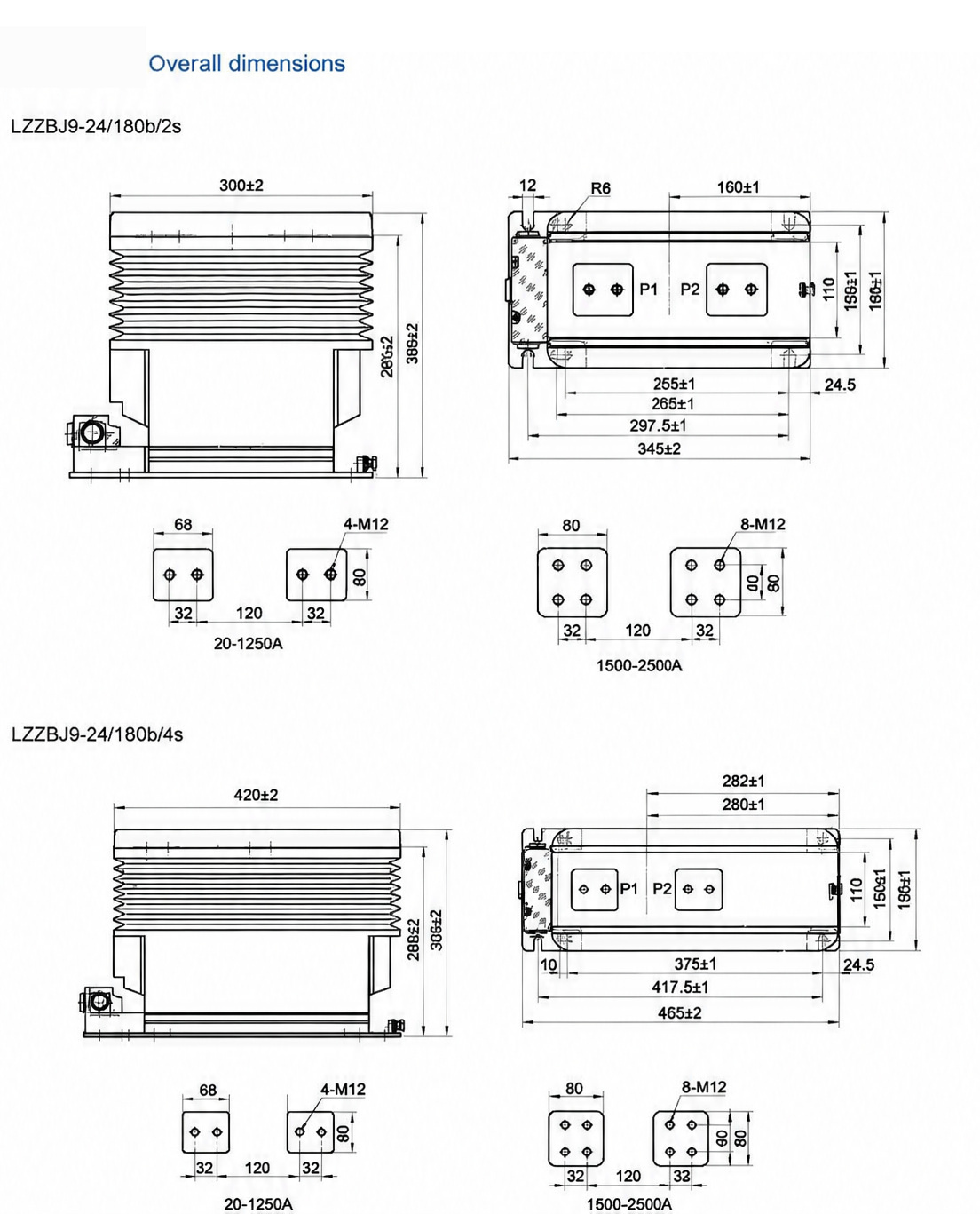

Dimension & outline drawing of LZZBJ9-24-180b-2s-4s — click image to zoom / view original.
