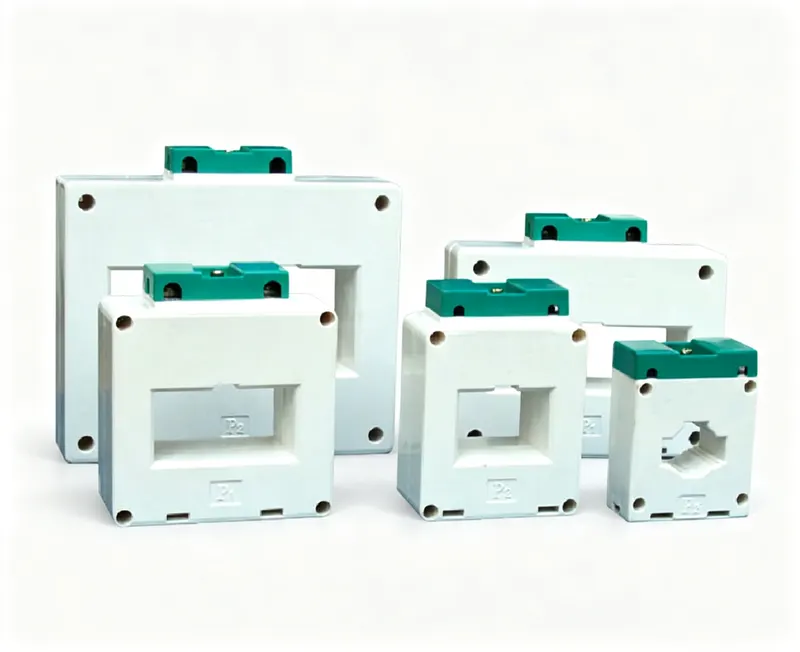

BH-0.66 Indoor Low Voltage Current Transformer 0.66kV

0.66kVBH-0.66

Winding & Schematic TopologyInternal Wiring Diagram

Primary Winding (P1 - P2):Series-connected in the line / through-core — 0.66kV

Secondary Metering (1S1 - 1S2):5A/1A (0.2/0.5/1.0)

Secondary Protection (2S1 - 2S2):Protection winding (when fitted)

Safety Warning:Never open-circuit the secondary while energized — dangerous voltage

Current Transformer IEC 61869-3 Certified

Model Ref:BH-0.66

BH-0.66 Indoor Low Voltage Current Transformer 0.66kV

Indoor low voltage current transformer, 0.66kV rated, epoxy resin casting type, for current measurement and protection in low voltage distribution systems. Complies with IEC 61869 and GB/T 20840 standards. Wide range of current ratios available, multiple accuracy classes. Compact size, easy installation, suitable for switchgear and panel mounting. Customizable ratios and specifications.

Key Engineering Advantages

LV current transformer
0.66kV
epoxy resin
multiple ratios
easy installation
customizable

Engineering Data

Complete Electrical & Mechanical Specifications

Model Ref: BH-0.66

Electrical Parameters

Primary Rated Voltage (Un):0.66kV

Secondary Winding Voltages:5A/1A

Metering & Protection Class:0.2/0.5/1.0

Rated Output Burden:

Rated Frequency:50/60Hz

Insulation & Withstand Ratings

Insulation System:Dry Epoxy Resin

Insulation Level (BIL):

Partial Discharge Level:< 5 pC at 1.2 Un

Environmental Class:

Standards Conformance:IEC 61869 / GB/T 20840

Recommended Deployment Environments

GEO · Engineering Decision Support

Global Engineering Overview

9-Module selection guide
missing data = [On Request]

Product Decision Island

BH-0.66 is a low voltage current transformer for indoor use, suitable for current measurement and protection in LV distribution systems.

Comprehensive Spec Matrix

Parameter	Specification	Verification
Product Type	Current Transformer	IEC 61869 / GB/T 20840
Model Code	BH-0.66	Factory nameplate marking
Primary Voltage	0.66kV	Rated voltage test (IEC 61869-1/3)
Secondary Voltage	5A/1A	Ratio check at rated frequency
Accuracy Class	0.2/0.5/1.0	Accuracy test (IEC 61869-2 / IEEE C57.13)
Rated Burden	[On Request]	Burden test at rated VA
Insulation Type	Dry Epoxy Resin	Dielectric tests per standard
Insulation Level (BIL)	[On Request]	Power-frequency & lightning impulse withstand
Standards	IEC 61869 / GB/T 20840	Certified to listed standards
Frequency	50/60Hz	Per IEC 61869-1
Environment	[On Request]	Per datasheet limits

Fit & Unfit Boundaries

Ideal For

Indoor low voltage switchgear and panel mounting
Current measurement and protection in LV distribution systems
Applications requiring accuracy classes 0.2, 0.5, or 1.0
Systems with rated frequency 50/60Hz
Customizable current ratios and specifications

Not Recommended For

Outdoor installation without additional protection
High voltage systems above 0.66kV
Voltage transformation applications
DC current measurement
High accuracy metering requiring class 0.1 or better

Topology & Wiring

Connect primary conductor through the window. Secondary terminals are 1S1 and 1S2 for the main winding; if dual ratio, use appropriate taps. Never open-circuit the secondary of a CT while energized - hazardous voltage. Ground the secondary winding at one point. Follow IEC 61869 for terminal markings and safety.

Standards & Compliance

Compliant with: IEC 61869 / GB/T 20840

Type Test Report: [On Request]
Calibration Certificate: [On Request]

Burden & Error Calculation (IEEE C57.13)

S_total = ΣS_instrument + I₂² × (ρ × 2L / A)

If S_total < 0.25 × S_rated: add compensation burden to maintain accuracy.
If S_total > S_rated: accuracy class cannot be guaranteed.

Product FAQ

Q: What is the rated voltage of BH-0.66?

A: The rated voltage is 0.66kV.

Q: What accuracy classes are available?

A: Accuracy classes available are 0.2, 0.5, and 1.0.

Q: Can it be used outdoors?

A: No, it is designed for indoor use only.

Missing fields are marked [On Request] — never fabricated. M2/M5/M6 verification rows follow IEC 61869 / IEEE C57.13 conventions.

SPEC · TECHNICAL DATA

Technical Specifications

BH-0.66
11 cols · 209 rows

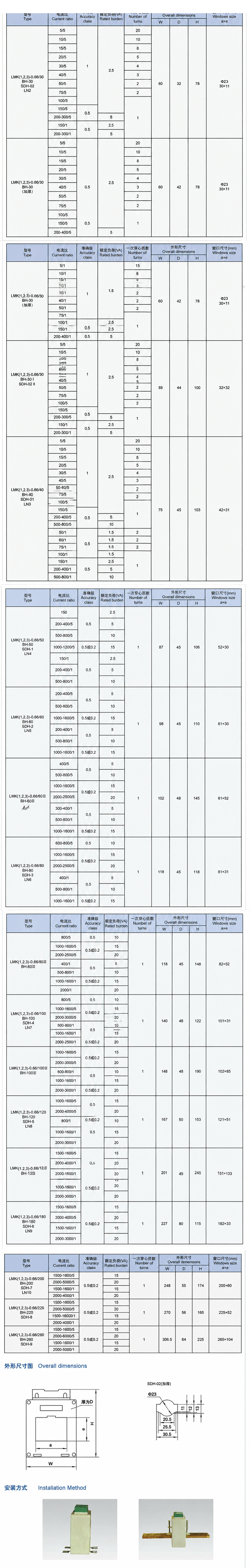

LMK (1,2,3)-0.66, BH, SDH, LN Series Current Transformer

Model	Rated current ratio (A)	Rated output (VA)	Accuracy class	Primary turns	Turns through core	Overall dimensions			Aperture dimensions (W×H)	Mounting dimensions (W×H)
Model	Rated current ratio (A)	Rated output (VA)	Accuracy class	Primary turns	Turns through core	W	D	H	Aperture dimensions (W×H)	Mounting dimensions (W×H)
LMK1-0.66 30/5	30/5	1	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 40/5	40/5	1	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 50/5	50/5	1.5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 60/5	60/5	2.5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 75/5	75/5	2.5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 100/5	100/5	2.5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 150/5	150/5	3.75	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 200/5	200/5	5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 250/5	250/5	5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 300/5	300/5	5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 400/5	400/5	5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 500/5	500/5	5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 600/5	600/5	5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 800/5	800/5	5	0.5	1	1	78	52	78	30×30	30×11
LMK1-0.66 1000/5	1000/5	5	0.5	1	1	78	52	78	30×30	30×11
LMK2-0.66 100/5	100/5	2.5	0.5	1	1	82	62	82	30×30	30×11
LMK2-0.66 150/5	150/5	3.75	0.5	1	1	82	62	82	30×30	30×11
LMK2-0.66 200/5	200/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK2-0.66 250/5	250/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK2-0.66 300/5	300/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK2-0.66 400/5	400/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK2-0.66 500/5	500/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK2-0.66 600/5	600/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK2-0.66 800/5	800/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK2-0.66 1000/5	1000/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK3-0.66 100/5	100/5	2.5	0.5	1	1	82	62	82	30×30	30×11
LMK3-0.66 150/5	150/5	3.75	0.5	1	1	82	62	82	30×30	30×11
LMK3-0.66 200/5	200/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK3-0.66 250/5	250/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK3-0.66 300/5	300/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK3-0.66 400/5	400/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK3-0.66 500/5	500/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK3-0.66 600/5	600/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK3-0.66 800/5	800/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK3-0.66 1000/5	1000/5	5	0.5	1	1	82	62	82	30×30	30×11
LMK1-0.66 150/5	150/5	2.5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 200/5	200/5	3.75	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 250/5	250/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 300/5	300/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 400/5	400/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 500/5	500/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 600/5	600/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 800/5	800/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 1000/5	1000/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 1200/5	1200/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 1500/5	1500/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 2000/5	2000/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 2500/5	2500/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 3000/5	3000/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 150/5	150/5	2.5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 200/5	200/5	3.75	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 250/5	250/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 300/5	300/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 400/5	400/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 500/5	500/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 600/5	600/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 800/5	800/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 1000/5	1000/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 1200/5	1200/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 1500/5	1500/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 2000/5	2000/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 2500/5	2500/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK2-0.66 3000/5	3000/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 150/5	150/5	2.5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 200/5	200/5	3.75	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 250/5	250/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 300/5	300/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 400/5	400/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 500/5	500/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 600/5	600/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 800/5	800/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 1000/5	1000/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 1200/5	1200/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 1500/5	1500/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 2000/5	2000/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 2500/5	2500/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK3-0.66 3000/5	3000/5	5	0.5	1	1	87	60	87	30×30	30×11
LMK1-0.66 300/5	300/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 400/5	400/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 500/5	500/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 600/5	600/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 800/5	800/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 1000/5	1000/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 1200/5	1200/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 1500/5	1500/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 2000/5	2000/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 2500/5	2500/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 3000/5	3000/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 300/5	300/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 400/5	400/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 500/5	500/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 600/5	600/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 800/5	800/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 1000/5	1000/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 1200/5	1200/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 1500/5	1500/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 2000/5	2000/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 2500/5	2500/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK2-0.66 3000/5	3000/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 300/5	300/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 400/5	400/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 500/5	500/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 600/5	600/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 800/5	800/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 1000/5	1000/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 1200/5	1200/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 1500/5	1500/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 2000/5	2000/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 2500/5	2500/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK3-0.66 3000/5	3000/5	5	0.5	1	1	118	80	118	40×40	40×12
LMK1-0.66 400/5	400/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK1-0.66 500/5	500/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK1-0.66 600/5	600/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK1-0.66 800/5	800/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK1-0.66 1000/5	1000/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK1-0.66 1200/5	1200/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK1-0.66 1500/5	1500/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK1-0.66 2000/5	2000/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK1-0.66 2500/5	2500/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK1-0.66 3000/5	3000/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK2-0.66 400/5	400/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK2-0.66 500/5	500/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK2-0.66 600/5	600/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK2-0.66 800/5	800/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK2-0.66 1000/5	1000/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK2-0.66 1200/5	1200/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK2-0.66 1500/5	1500/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK2-0.66 2000/5	2000/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK2-0.66 2500/5	2500/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK2-0.66 3000/5	3000/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK3-0.66 400/5	400/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK3-0.66 500/5	500/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK3-0.66 600/5	600/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK3-0.66 800/5	800/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK3-0.66 1000/5	1000/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK3-0.66 1200/5	1200/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK3-0.66 1500/5	1500/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK3-0.66 2000/5	2000/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK3-0.66 2500/5	2500/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK3-0.66 3000/5	3000/5	5	0.5	1	1	140	100	140	50×50	50×12
LMK1-0.66 500/5	500/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK1-0.66 600/5	600/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK1-0.66 800/5	800/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK1-0.66 1000/5	1000/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK1-0.66 1200/5	1200/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK1-0.66 1500/5	1500/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK1-0.66 2000/5	2000/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK1-0.66 2500/5	2500/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK1-0.66 3000/5	3000/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK2-0.66 500/5	500/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK2-0.66 600/5	600/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK2-0.66 800/5	800/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK2-0.66 1000/5	1000/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK2-0.66 1200/5	1200/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK2-0.66 1500/5	1500/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK2-0.66 2000/5	2000/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK2-0.66 2500/5	2500/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK2-0.66 3000/5	3000/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK3-0.66 500/5	500/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK3-0.66 600/5	600/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK3-0.66 800/5	800/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK3-0.66 1000/5	1000/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK3-0.66 1200/5	1200/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK3-0.66 1500/5	1500/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK3-0.66 2000/5	2000/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK3-0.66 2500/5	2500/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK3-0.66 3000/5	3000/5	5	0.5	1	1	182	120	182	60×60	60×12
LMK1-0.66 600/5	600/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK1-0.66 800/5	800/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK1-0.66 1000/5	1000/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK1-0.66 1200/5	1200/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK1-0.66 1500/5	1500/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK1-0.66 2000/5	2000/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK1-0.66 2500/5	2500/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK1-0.66 3000/5	3000/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK2-0.66 600/5	600/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK2-0.66 800/5	800/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK2-0.66 1000/5	1000/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK2-0.66 1200/5	1200/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK2-0.66 1500/5	1500/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK2-0.66 2000/5	2000/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK2-0.66 2500/5	2500/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK2-0.66 3000/5	3000/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK3-0.66 600/5	600/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK3-0.66 800/5	800/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK3-0.66 1000/5	1000/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK3-0.66 1200/5	1200/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK3-0.66 1500/5	1500/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK3-0.66 2000/5	2000/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK3-0.66 2500/5	2500/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK3-0.66 3000/5	3000/5	5	0.5	1	1	227	120	227	80×80	80×12
LMK1-0.66 1000/5	1000/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK1-0.66 1200/5	1200/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK1-0.66 1500/5	1500/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK1-0.66 2000/5	2000/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK1-0.66 2500/5	2500/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK1-0.66 3000/5	3000/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK2-0.66 1000/5	1000/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK2-0.66 1200/5	1200/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK2-0.66 1500/5	1500/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK2-0.66 2000/5	2000/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK2-0.66 2500/5	2500/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK2-0.66 3000/5	3000/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK3-0.66 1000/5	1000/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK3-0.66 1200/5	1200/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK3-0.66 1500/5	1500/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK3-0.66 2000/5	2000/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK3-0.66 2500/5	2500/5	5	0.5	1	1	248	120	248	100×80	100×12
LMK3-0.66 3000/5	3000/5	5	0.5	1	1	248	120	248	100×80	100×12

Engineering Drawing

Specification & Outline Drawing

Original image, not compressed

Dimension & outline drawing of BH-0.66 — click image to zoom / view original.
